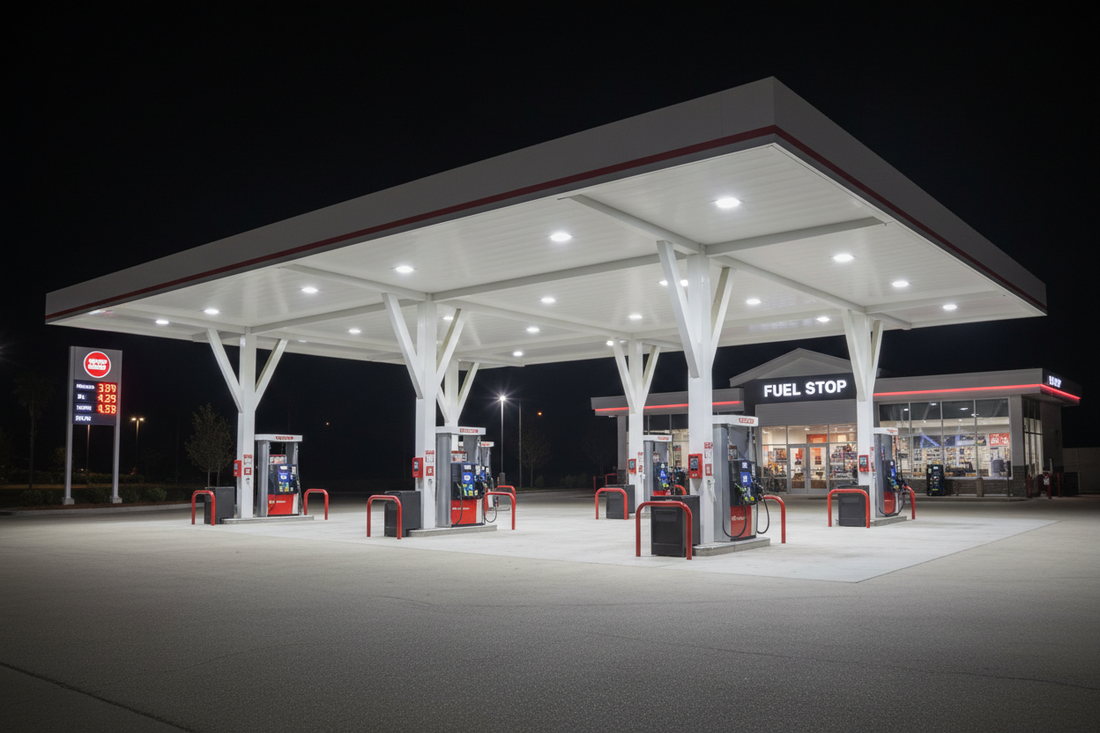

How to Choose the Best Commercial Canopy Lights for Retail & Gas Stations
Last updated: March 2026 | Reading time: ~15 minutes
If you manage a retail store, a gas station, or any commercial property with a covered outdoor area, you already know the headache: lights that yellow out after 18 months, dark corners that make customers uneasy, and maintenance calls that eat into your operating budget. Choosing the right canopy light upfront saves you from all of that.
This guide is written specifically for retail managers and facility operators who need to make a smart, defensible purchasing decision — not just pick whatever's cheapest on the shelf. We'll walk through beam angles, housing materials, lumen depreciation, weather resistance, and the specific specs that separate a fixture that lasts a decade from one that fails in two years.
Let's get into it.
Why Canopy Lighting Is Different From General Outdoor Lighting
Canopy lighting operates in a uniquely demanding environment. Unlike a parking lot pole light that sits 25 feet in the air, a canopy fixture is mounted 12–18 feet overhead in a semi-enclosed space. That means:
- Heat buildup is more intense. Enclosed canopy ceilings trap heat, which accelerates LED driver failure and lumen depreciation.
- Moisture exposure is constant. Rain splash, humidity, and condensation cycle through the fixture daily.
- Beam control matters more. You need light to land precisely on the fueling area or checkout zone — not scatter into the sky or blind drivers pulling in.
- Appearance affects customer perception. A yellowed, flickering canopy light signals neglect. Bright, even illumination signals a well-run operation.
These factors make canopy lighting a specialized category. The specs that matter here are different from what you'd prioritize for a warehouse or a parking lot.
The Core Problem: Beam Angles and Dark Spots
Here's something most lighting spec sheets won't tell you directly: a fixture with a high lumen rating can still produce terrible results if the beam angle is wrong for your canopy geometry.
Dark spots — those shadowy patches between fixtures — are the number one visual safety complaint in retail and gas station environments. Customers notice them. More importantly, they affect perceived safety, which directly impacts dwell time and transaction completion rates at fuel pumps.
How Beam Angles Work in Practice
Most commercial canopy lights ship with a standard 120° beam angle. That works fine for canopies with fixtures spaced 10–12 feet apart. But if your canopy has wider fixture spacing — common in older gas station builds — you'll get dark zones between fixtures unless you go wider (140°–150°) or add supplemental fixtures.
The GP04 Series from Rackora addresses this with a symmetric wide-angle lens that distributes light evenly across the coverage zone. At 5,200 lumens from a 40W draw, it delivers 130 lumens per watt — which means you're getting serious coverage without running up your electricity bill.
A practical rule of thumb: for every 10 feet of canopy width, you want at least 3,000–4,000 lumens of delivered (not rated) light. Factor in a 10–15% real-world derating for heat and age, and spec accordingly.
Mounting Position Matters Too
Flush-mount canopy fixtures (surface-mounted to the ceiling) behave differently from pendant or recessed options. For gas station canopies, flush-mount is almost always the right call — it keeps the fixture protected from vehicle clearance issues and positions the lens closer to the work surface for better footcandle delivery.
Featured Product: GP04 Series LED Canopy Light
The GP04 Series LED Garage & Canopy Light is our go-to recommendation for retail and gas station canopy applications. Here's why it stands out:
- Tunable wattage: 20W / 30W / 40W — set it at the job site to match your canopy size and spacing
- Output: Up to 5,200 lumens at 130 LPW efficiency
- Color temperatures: 3500K / 4000K / 5000K selectable
- Housing: Die-cast aluminum with IP65 wet location rating
- Lifespan: 50,000+ hours (L70)
- Price: $139.99
→ Shop GP04 Canopy Light — $139.99
The Pain Point Nobody Talks About: Lens Yellowing and Lumen Depreciation
You've seen it. A canopy that looked great at installation starts looking dingy 18 months later. The lenses have gone from clear to amber-yellow, and the light output has dropped noticeably. This isn't just cosmetic — it's a real performance problem.
Why Lenses Yellow
Polycarbonate lenses yellow when exposed to UV radiation and heat over time. This is a material science issue, not a brand issue. Cheap fixtures use standard polycarbonate because it's inexpensive to mold. The problem is that UV exposure causes photooxidation — the polymer chains break down, and the material takes on a yellow tint that absorbs and scatters light instead of transmitting it cleanly.
The fix is either:
- UV-stabilized polycarbonate — treated with additives that slow photooxidation. Better, but still degrades over time.
- Tempered glass lenses — don't yellow at all, but add weight and cost.
- Aluminum reflector designs without a lens — no lens to yellow, but requires careful optical design to control glare.
When evaluating fixtures, ask specifically about lens material and UV stabilization. If the spec sheet doesn't mention it, assume it's standard polycarbonate.
Lumen Depreciation: What L70 Actually Means
Every LED fixture has a lumen depreciation curve. The industry standard rating is L70 — the point at which the fixture outputs 70% of its original lumens. A fixture rated at 50,000 hours L70 will still be putting out 70% of its original light after 50,000 hours of operation.
At 12 hours per day of operation (typical for a gas station), 50,000 hours equals roughly 11.4 years. That's a meaningful difference from a fixture rated at 25,000 hours L70, which would need replacement or relamping in about 5.7 years.
The GP04 Series is rated at 50,000+ hours L70, which puts it in the top tier for commercial canopy applications.
Quick math for retail managers: If you're replacing fixtures every 3–4 years due to lumen depreciation, you're spending 2–3x more on maintenance over a decade than you would with a properly specified 50,000-hour fixture. The upfront cost difference is almost always recovered within the first replacement cycle.
Weather Resistance: Die-Cast Aluminum vs. Plastic Housing
This is where a lot of purchasing decisions go wrong. The housing material determines how your fixture holds up over years of thermal cycling, moisture exposure, and UV bombardment. Here's a direct comparison:
| Factor | Die-Cast Aluminum | Plastic (Polycarbonate/ABS) |
|---|---|---|
| Thermal Management | Excellent — aluminum conducts heat away from LEDs and driver, extending component life | Poor — plastic is an insulator; heat builds up inside the fixture, accelerating LED and driver failure |
| UV Resistance | Excellent — anodized or powder-coated aluminum does not degrade under UV exposure | Moderate to poor — standard polycarbonate yellows and becomes brittle; UV-stabilized grades perform better but still degrade |
| Impact Resistance | High — die-cast aluminum is rigid and resists deformation from physical impact | Variable — polycarbonate is impact-resistant when new but becomes brittle with age and UV exposure |
| Corrosion Resistance | High with proper coating — powder coat or anodizing prevents oxidation even in coastal/humid environments | Excellent — plastic doesn't corrode, but seals and gaskets can degrade, allowing moisture ingress |
| Weight | Heavier — requires proper canopy structure support; typically 8–15 lbs for commercial fixtures | Lighter — easier to install, less structural load on canopy ceiling |
| Long-Term Cost | Lower — longer lifespan, fewer replacements, better thermal performance extends LED life | Higher — lower upfront cost offset by more frequent replacement and higher failure rates in harsh environments |
| IP Rating Achievable | IP65–IP67 with proper gasket design | IP65 achievable, but gasket integrity degrades faster with thermal cycling |
| Best For | Commercial and industrial applications where longevity and performance are priorities | Budget-constrained applications with shorter replacement cycles or lower environmental stress |
Bottom line: For a gas station or retail canopy that operates 12–18 hours per day in variable weather, die-cast aluminum is the correct choice. The thermal management advantage alone extends LED and driver life by 20–40% compared to equivalent plastic-housed fixtures. The GP04 Series uses die-cast aluminum housing with an IP65 wet location rating — built for exactly this use case.
Color Temperature: What's Right for Retail vs. Gas Stations?
Color temperature (measured in Kelvin) affects how your space looks and how customers feel in it. Here's a practical breakdown:
- 3500K (Warm White): Flattering, inviting light. Good for retail environments where you want customers to feel comfortable and spend time. Products look warmer and more appealing under 3500K.
- 4000K (Neutral White): The sweet spot for most commercial canopy applications. Bright enough to feel safe and well-lit, neutral enough not to feel clinical. Works well for both retail and gas station canopies.
- 5000K (Cool White / Daylight): Maximum visual acuity and alertness. Preferred for gas station canopies where safety and visibility are the primary concern. Makes it easier to read pump displays and see the ground clearly.
The GP04 Series lets you select between all three at installation — which means you can standardize on one SKU across your portfolio and dial in the right color temperature for each location.
Energy Efficiency and Utility Rebates
Commercial canopy lighting runs a lot of hours. A gas station canopy operating 14 hours per day, 365 days per year accumulates 5,110 hours annually. At that rate, the difference between a 40W LED and a 150W metal halide replacement is significant:
- 150W Metal Halide (typical legacy fixture): 150W × 5,110 hours = 766.5 kWh/year per fixture
- 40W GP04 LED: 40W × 5,110 hours = 204.4 kWh/year per fixture
- Annual savings per fixture: 562.1 kWh — at $0.12/kWh commercial rate, that's $67.45/year per fixture
For a canopy with 12 fixtures, that's over $800/year in electricity savings alone — before factoring in reduced maintenance costs from fewer lamp replacements.
Many utilities offer rebates for DLC-listed LED fixtures. Check with your local utility before purchasing — rebates of $20–$50 per fixture are common, which can meaningfully offset your upfront investment.
Supplemental Lighting: When Canopy Lights Aren't Enough
In some retail and gas station layouts, canopy lights alone don't cover the full property. Perimeter areas, parking lots, and pedestrian pathways need supplemental fixtures. Here are three products worth considering alongside your canopy upgrade:
FD06 LED Flood Light — Perimeter and Accent Lighting
The FD06 LED Flood Light is a compact, adjustable-wattage flood fixture ideal for illuminating signage, building facades, and perimeter areas around your canopy. At 15W/20W/35W selectable and 4,725 lumens peak output at 135 LPW, it punches well above its weight class.
- IP65 waterproof rating
- Adjustable wattage and color temperature at installation
- Ideal for accent and perimeter applications
- Price: $91.00
→ Shop FD06 Flood Light — $91.00
LED Post Top Light — Parking Lot and Pathway Lighting
For parking lots and pedestrian areas adjacent to your retail or gas station property, the LED Post Top Light delivers 70W/100W/150W selectable output with full dimmability. It's designed to mount on standard 3" tenon poles and provides broad, even coverage across large open areas.
- 70W / 100W / 150W selectable
- Dimmable for energy management
- High-efficiency design for parking lot and pathway applications
- Price: $375.00
→ Shop LED Post Top Light — $375.00
UFO07 LED High Bay — Indoor Service Areas and Car Washes
If your property includes an indoor service bay, car wash tunnel, or convenience store stockroom, the UFO07 LED High Bay is worth a look. DLC 5.1 Premium listed, 150 LPW efficiency, and tunable wattage from 150W to 240W make it one of the most versatile high-output fixtures in the lineup.
- 150W / 200W / 240W tunable
- DLC 5.1 Premium listed — qualifies for most utility rebate programs
- 150 LPW efficiency
- Price: $429.00
→ Shop UFO07 High Bay — $429.00
How to Spec a Canopy Lighting Project: A Step-by-Step Framework
If you're managing a retrofit or new installation, here's a practical framework for getting the spec right before you order:
Step 1: Measure Your Canopy
Document the canopy dimensions (length × width), mounting height, and existing fixture locations. Note the spacing between fixture mounting points — this determines whether you need a standard or wide-angle beam pattern.
Step 2: Determine Your Target Footcandles
The Illuminating Engineering Society (IES) recommends the following minimum maintained footcandles for commercial canopy applications:
- Gas station fueling area: 20–30 fc average, 5 fc minimum at any point
- Retail entrance canopy: 10–20 fc average
- Drive-through canopy: 15–25 fc average
Step 3: Calculate Fixture Count
Use the formula: Number of fixtures = (Target fc × Area in sq ft) ÷ (Fixture lumens × Coefficient of Utilization). For a rough estimate, use a CU of 0.65–0.75 for typical canopy applications. Most lighting manufacturers can provide a photometric layout (AGi32 or DIALux) at no charge for commercial projects — ask for one before finalizing your order.
Step 4: Verify Electrical Compatibility
Confirm your canopy's electrical supply voltage (120V, 208V, 240V, or 277V). The GP04 Series operates on universal voltage (120–277V), so it's compatible with virtually any commercial electrical system in the US.
Step 5: Check for Rebate Eligibility
Before placing your order, visit your utility's website or the DesignLights Consortium (DLC) database at designlights.org to verify rebate eligibility. DLC-listed fixtures qualify for rebates at most US utilities.
Installation Considerations for Retail Managers
A few practical notes from the field:
- Hire a licensed electrician. Commercial canopy lighting involves line voltage work in a wet location. This is not a DIY project, and most jurisdictions require a licensed contractor for commercial electrical work.
- Plan for conduit routing. Canopy fixtures typically require conduit runs from the junction box to each fixture location. Factor this into your installation cost estimate.
- Consider a phased retrofit. If you're managing a multi-location portfolio, a phased approach — starting with your highest-traffic or worst-performing locations — lets you validate the fixture performance before committing to a full rollout.
- Document your baseline. Before the retrofit, take footcandle readings at multiple points across the canopy. This gives you a before/after comparison that's useful for reporting energy savings to ownership or corporate.
- Check local codes. Some municipalities have outdoor lighting ordinances that limit maximum footcandles or require full-cutoff fixtures to minimize light pollution. Verify compliance before installation.
Total Cost of Ownership: The Right Way to Compare Fixtures
Retail managers are often evaluated on capital expenditure, which creates pressure to choose the lowest-cost fixture. But canopy lighting is a case where total cost of ownership (TCO) is a much better decision framework than upfront cost alone.
Here's a simplified 10-year TCO comparison for a 12-fixture canopy operating 14 hours/day:
| Cost Category | Legacy 150W Metal Halide | GP04 40W LED |
|---|---|---|
| Fixture cost (12 units) | $600–$900 | $1,679.88 |
| Energy cost (10 years @ $0.12/kWh) | $9,198 | $2,453 |
| Lamp replacements (every 2–3 years) | $1,200–$1,800 | $0 |
| Maintenance labor (4 service calls) | $800–$1,600 | $0–$200 |
| 10-Year TCO (estimated) | $11,798–$13,498 | $4,132–$4,332 |
The LED option costs roughly 3x less over a decade, even with a higher upfront fixture cost. That's the conversation to have with ownership when you're making the case for a lighting upgrade.
Ready to Upgrade Your Canopy Lighting?
Whether you're managing a single gas station or a regional retail portfolio, the right canopy lighting decision comes down to three things: beam angle coverage, housing durability, and long-term lumen maintenance. The GP04 Series checks all three boxes at a price point that makes the TCO math work.
→ Get the GP04 Canopy Light — $139.99
Have a larger project or need a photometric layout? Contact our commercial lighting team — we work with retail managers and facility operators on multi-site retrofits and can provide fixture counts, photometric reports, and volume pricing.
Frequently Asked Questions
Q: What wattage do I need for a gas station canopy?
A: For a standard gas station canopy with fixtures spaced 10–14 feet apart at a mounting height of 14–18 feet, 40W LED fixtures delivering 4,500–5,500 lumens are typically sufficient to meet IES recommended footcandle levels (20–30 fc average). If your canopy has wider fixture spacing or higher mounting heights, consider stepping up to 60W or adding fixtures. A photometric layout will give you a definitive answer for your specific geometry.
Q: How do I know if my canopy has dark spots?
A: The easiest way is a footcandle meter (also called a lux meter) — they're available for under $50 and give you actual measured light levels at any point on the ground. Take readings at the center of each fueling island and at the midpoint between fixtures. If any reading is below 5 fc, you have a dark spot that needs to be addressed. Visually, dark spots often appear as shadowy zones between fixtures, especially noticeable at night when your eyes have adjusted.
Q: What's the difference between IP65 and IP67 for canopy lights?
A: Both ratings indicate the fixture is dust-tight and water-resistant. IP65 means the fixture is protected against water jets from any direction — sufficient for rain and splash in a canopy environment. IP67 adds protection against temporary immersion in water up to 1 meter for 30 minutes. For canopy applications, IP65 is the standard minimum requirement. IP67 is overkill for most canopy installations but may be worth specifying in coastal or flood-prone locations.
Q: Can I replace my existing metal halide canopy fixtures with LED directly?
A: In most cases, yes — but you'll need to verify the mounting configuration and electrical supply. Most commercial canopy fixtures use a standard junction box mounting that's compatible with LED retrofit fixtures. The main variable is voltage: confirm whether your canopy is wired for 120V, 208V, 240V, or 277V. The GP04 Series operates on universal voltage (120–277V), so it's compatible with all standard US commercial electrical systems. You'll also want to remove or bypass any existing ballast, as LED drivers don't require them.
Q: How long does LED canopy light installation take?
A: For a licensed electrician, a straightforward fixture swap (removing old fixture, installing new LED, connecting wiring) typically takes 30–60 minutes per fixture. A 12-fixture canopy can usually be completed in a single day. If conduit rerouting or new circuit work is required, add time accordingly. Most gas stations and retail locations prefer to schedule installation during off-peak hours or overnight to minimize customer disruption.
Q: Do LED canopy lights work in cold weather?
A: Yes — LEDs actually perform better in cold temperatures than metal halide or fluorescent fixtures. Cold ambient temperatures help keep the LED junction temperature lower, which extends component life and can slightly increase lumen output. The GP04 Series is rated for operation in ambient temperatures from -40°F to 122°F (-40°C to 50°C), making it suitable for all US climate zones including northern states with harsh winters.
Q: What color temperature is best for a gas station canopy?
A: 4000K (neutral white) or 5000K (cool white / daylight) are the most common choices for gas station canopies. 5000K provides the highest visual acuity and makes it easiest to read pump displays and see the ground clearly — which is why it's the most popular choice for fueling applications. 4000K is a good compromise if you want a slightly warmer appearance without sacrificing too much visibility. Avoid 3000K or warmer for gas station canopies — the warm tone reduces contrast and makes the space feel dimmer than it actually is.
Q: Are there rebates available for LED canopy light upgrades?
A: Yes, in most US states. The majority of commercial utility rebate programs cover LED canopy light retrofits, particularly for fixtures that replace metal halide or high-pressure sodium sources. Rebate amounts typically range from $20 to $75 per fixture, depending on your utility and the wattage reduction achieved. To find rebates in your area, visit the DesignLights Consortium database at designlights.org or contact your utility's commercial energy efficiency program directly. Some utilities also offer on-bill financing for larger projects.
Q: How do I prevent glare from canopy lights affecting drivers?
A: Glare control in canopy lighting comes down to two factors: beam angle and fixture positioning. Fixtures with a symmetric wide-angle distribution (120°–140°) spread light across the canopy surface without creating hot spots directly below the fixture. Avoid fixtures with a very narrow beam (60°–90°) in canopy applications — they create bright spots directly below and dark zones between fixtures, which increases glare contrast. Mounting the fixture flush to the canopy ceiling (rather than pendant-mounted) also reduces the angle at which drivers see the light source, minimizing direct glare.
Q: What's the warranty on commercial LED canopy lights?
A: Commercial-grade LED canopy fixtures typically carry a 5-year warranty from reputable manufacturers. This covers defects in materials and workmanship, including LED array and driver failures. When evaluating warranty terms, pay attention to what's covered: some warranties cover parts only, while others include replacement labor. For a commercial installation, a 5-year parts-and-labor warranty is the standard to look for. The GP04 Series is backed by a manufacturer warranty — contact our team for specific warranty terms applicable to your project.
Have questions about your specific canopy lighting project? Our commercial lighting team is available to help with fixture selection, photometric layouts, and volume pricing for multi-site installations. Contact us here.
