1. The Physics of Solar Poles: The Overturning Moment
To understand why foundation depth is so critical for solar street lights, you must first understand the concept of the "Overturning Moment." In structural engineering, a moment is a measure of the tendency of a force to cause a body to rotate about a specific point or axis. For a 30-foot solar light pole, the pivot point is the ground line where the pole meets the concrete foundation.
A traditional grid-tied LED street light features a relatively aerodynamic, lightweight cobra-head fixture. A commercial solar street light, conversely, requires a large solar panel (often exceeding 10 square feet in surface area) and a heavy lithium-ion battery pack (often weighing 40 to 80 pounds), all mounted at the very top of the 30-foot lever arm. When hurricane-force winds hit that solar panel, it generates extreme lateral pressure. Because this pressure is applied 30 feet in the air, the mechanical advantage multiplies the force exponentially by the time it reaches the base plate.
If the underground concrete foundation is not deep enough, or if the surrounding soil lacks the necessary bearing capacity, the concrete cylinder will simply pivot through the dirt. The pole will either lean permanently, requiring a costly complete re-installation, or it will violently uproot from the ground entirely.
2. Effective Projected Area (EPA) and AASHTO Wind Loads
Before a structural engineer can calculate the required depth of the concrete foundation, they must determine the maximum force that the wind will exert on the pole. This requires two critical data points: the local wind speed code and the total Effective Projected Area (EPA) of the solar assembly.
Understanding EPA: EPA is not simply the physical square footage of the solar panel. It is the calculation of the surface area that faces the wind, multiplied by a drag coefficient (which accounts for the aerodynamic shape of the object) and a gust factor. For example, a flat solar panel tilted at a 45-degree angle presents a massive EPA, whereas a cylindrical battery box allows wind to slip around it, resulting in a lower drag coefficient. Contractors must add the EPA of the solar panel, the luminaire, the mounting brackets, and the pole itself to find the Total EPA.
Applying Local Wind Maps: Once the Total EPA is calculated, contractors must cross-reference the American Society of Civil Engineers (ASCE) 7-22 wind maps, which are adopted by the AASHTO LRFD (Load and Resistance Factor Design) specifications. If your project is located in an inland region, you may only need to engineer the foundation to withstand 115 mph winds. However, if you are installing along the Gulf Coast or in Florida, the Florida Building Code (FBC) may require the pole and foundation to withstand Risk Category IV wind speeds based on a 3,000-year Mean Recurrence Interval (MRI)—which can easily exceed 170 mph. An exponential increase in wind speed requires a significantly deeper and wider concrete shaft foundation to counteract the amplified overturning moment.
For detailed guidance on AASHTO wind load calculations, EPA analysis, and structural compliance for Florida and Gulf Coast installations, refer to our comprehensive Florida AASHTO wind load requirements guide for solar street light installations.
3. Geotechnical Realities: Designing for Soil Mechanics
A concrete foundation is only as strong as the dirt surrounding it. You can pour a massive, 10-foot-deep reinforced concrete pier, but if it is submerged in loose, saturated sand, the pole will still fail under load. This is where geotechnical engineering becomes the most critical phase of the project.
Contractors should always request a localized soil report, typically generated via Standard Penetration Testing (SPT). Soil is broadly categorized into two types, which dictate how the foundation will interact with the earth:
- Cohesive Soils (Clay and Silt): These soils stick together. They generally provide excellent lateral support for concrete foundations because the soil resists shearing. A foundation in dense clay can often be shallower than in other soil types because the earth securely "grips" the concrete cylinder.
- Cohesionless Soils (Sand and Gravel): These soils do not stick together. In states like Florida or coastal California, installations frequently encounter loose, sandy soils. Sand easily displaces under pressure. When the overturning moment pushes the concrete foundation against the sand, the sand compresses and shifts, allowing the pole to lean.
Furthermore, contractors must account for the Seasonal High Water Table (SHWT). If the bottom three feet of your foundation are submerged in groundwater, the soil's bearing capacity is drastically reduced, and the concrete essentially becomes buoyant, destabilizing the entire structure. In high-water-table or loose-sand environments, engineers must significantly increase both the depth and the diameter of the foundation to compensate.

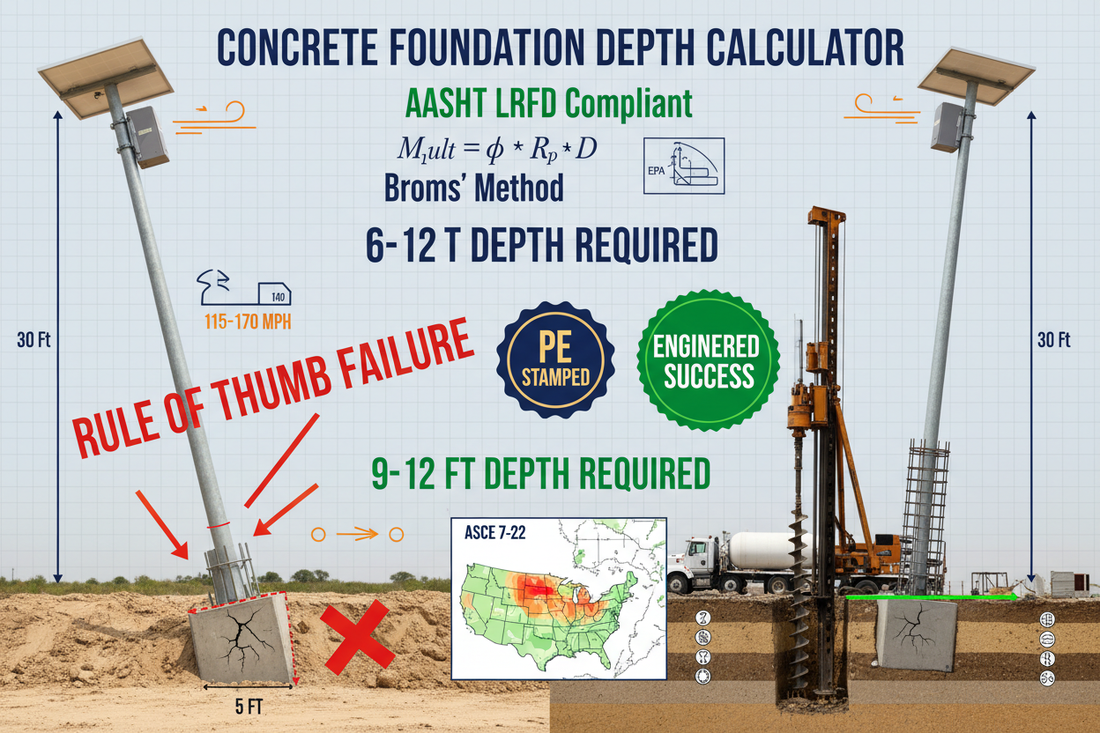

4. The Broms' Method for Shaft Foundation Depth
So, how do engineers actually calculate the exact depth required? For cantilevered mast arm poles and high-mast solar lighting, the industry standard relies heavily on Broms' Method for analyzing laterally loaded piles, as adopted by the AASHTO LRFD specifications.
Broms' Method assumes that the concrete foundation acts as a rigid, rotating cylinder. By inputting the lateral force of the wind (derived from the EPA), the height of the force application (30 feet), the diameter of the concrete pier (typically 24 to 36 inches for heavy solar poles), and the shear strength of the soil, the formula calculates the exact embedment depth required to prevent the soil from yielding.
While the exact mathematics are complex and require a licensed Professional Engineer (PE) to stamp, the practical application for contractors is clear: Do not guess. For a heavy-duty 30-foot commercial solar light pole installed in average cohesive soil with a 130 mph wind rating, a standard drilled shaft foundation typically requires a depth of 6 to 8 feet and a diameter of 24 inches. If that same pole is moved to a coastal sandy environment with 170 mph wind requirements, that foundation depth may quickly scale to 9 to 12 feet deep with a 30-inch diameter, incorporating a heavily reinforced rebar cage.
5. Anchor Bolt Design and Rebar Cage Construction
The depth of the hole and the volume of the concrete are only part of the equation; the connection between the aluminum or steel pole base and the concrete pier is equally vital. Commercial 30-foot solar poles are almost exclusively mounted using a 4-bolt base plate system.
During the foundation pour, contractors must suspend a rebar cage and an anchor bolt template into the drilled shaft. The AASHTO LRFD specifications mandate rigorous checks for the fatigue limit state of these anchor rods, as they will be subjected to thousands of repeated applications of axial tension due to wind-induced vibrations and vortex shedding.
Critical Installation Best Practices:
- Anchor Bolt Projection: Ensure the anchor bolts project the exact specified distance above the finished concrete grade. If they are too low, the nuts will not fully thread, compromising the connection. If they are too high, the base cover will not fit, and the bolts will be subjected to excessive bending forces.
- Leveling Nuts: A 30-foot pole will exaggerate any minor imperfection at the base. If the concrete is not perfectly level, contractors use leveling nuts situated beneath the base plate to ensure the pole stands perfectly plumb. Once leveled, the gap between the concrete and the base plate must be properly grouted with non-shrink grout to prevent pest intrusion and moisture accumulation, which can corrode the anchor bolts.
- Concrete Curing: Never mount a top-heavy 30-foot solar assembly on green concrete. Concrete must typically cure for a minimum of 7 to 14 days (reaching at least 75% of its design compressive strength, usually 3,000 to 4,000 PSI) before the heavy pole and solar array are hoisted into place.
6. Avoiding the Hidden Costs of Foundation Rework
For B2B contractors, the financial margins on municipal lighting projects are tight. Miscalculating foundation depth leads to a disastrous chain of events. If a city inspector demands the structural PE stamped drawings and your foundations fall short of the required ASCE 7-22 wind load depth for your local soil type, you will be forced to extract the freshly poured concrete.
Tearing out inadequate foundations requires heavy excavators, hydraulic breakers, and expensive disposal fees. It halts project timelines, infuriates municipal clients, and completely erodes your profitability. Conversely, drastically over-engineering every hole—drilling 12 feet down for a project that only legally requires 6 feet—results in thousands of dollars wasted on unnecessary concrete trucks, rebar fabrication, and auger drilling time. Precision engineering is the only way to protect both safety and profitability.
