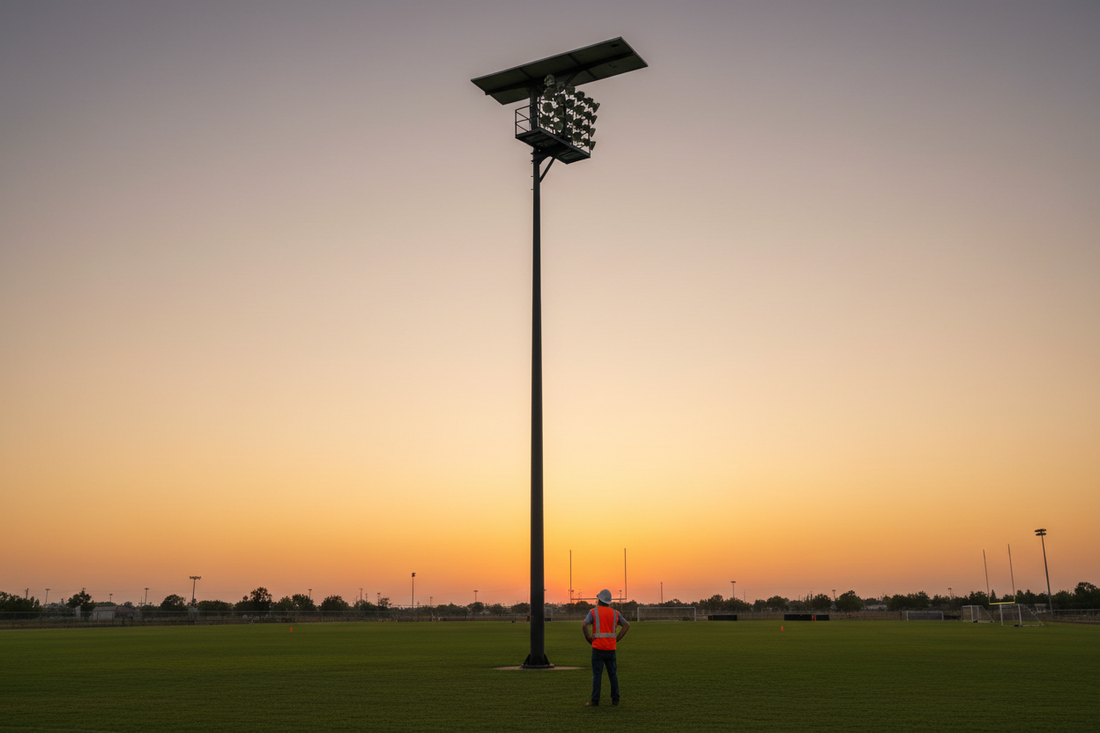

Contractor's Guide: Installing 50W Solar LED Stadium Light

Why Solar Stadium Lighting Is Changing the Game for Contractors

If you've been quoting sports facility lighting projects lately, you already know the conversation has shifted. Facility managers aren't just asking about lumens and color temperature anymore — they're asking about utility independence, installation timelines, and what happens when the grid goes down during a Friday night game.

Solar-powered stadium lights answer all three. But here's the thing most installation guides won't tell you: the electrical work is the easy part. The hard part is the structural and environmental engineering that happens before you ever touch a wire. Wind load calculations, pole height selection, panel orientation — get any of these wrong and you're looking at a warranty void, a failed inspection, or worse, a collapsed mast.

This guide is written for working contractors and the sports facility managers who hire them. We'll walk through every phase of a 50W solar LED stadium light installation — from site survey to final commissioning — with a practical wind resistance and mounting height evaluation checklist you can use on any job.

---

Understanding the 50W Solar LED Stadium Light: What You're Working With

Before we get into installation, let's establish a baseline. The 50W solar LED stadium light we're referencing throughout this guide is the Rackora Super High Power Solar LED Stadium Light — 50W, 10,000LM. Here's a quick spec snapshot:

• LED Output: 10,000 lumens
• Battery: 25AH LiFePO4 (lithium iron phosphate)
• Solar Panel: 120W monocrystalline
• Waterproof Rating: IP66
• Mounting: Adjustable bracket (compatible with standard round poles)
• Price: $1,199.00

Rackora 50W Solar LED Stadium Light — $1,199.00 → Shop Now

The LiFePO4 battery chemistry is worth calling out specifically. Unlike older lithium-ion packs, LiFePO4 cells are thermally stable, meaning they don't enter thermal runaway in high-heat environments — a real concern when you're mounting a battery pack on a steel pole in a sun-exposed stadium. They also hold capacity better over 2,000+ charge cycles, which matters for a fixture that's charging and discharging every single day.

---

Phase 1: Site Survey and Pre-Installation Planning

1.1 Assess the Lighting Zone

Start by mapping the field. For a standard youth or recreational sports field (roughly 200' × 300'), you'll typically need 4–8 fixtures depending on the target foot-candle level. The Illuminating Engineering Society (IES) recommends:

• Class IV (recreational, non-televised): 10–20 fc average horizontal illuminance
• Class III (club/interscholastic): 20–30 fc
• Class II (college/minor league): 30–50 fc

A single 50W / 10,000-lumen fixture at 25 feet mounting height covers roughly a 40' × 40' zone at Class IV levels. For larger fields or higher classifications, you'll be specifying multiple units or stepping up to the 80W–150W All-in-Two Solar Stadium Light (10,000–20,000LM, starting at $720.00).

Need more output? Rackora 80W–150W Solar Stadium Light — from $720.00 → Shop Now

1.2 Solar Resource Assessment

Pull the peak sun hours (PSH) data for your project location using NREL's PVWatts tool or the NASA POWER database. The continental US ranges from about 3.5 PSH (Pacific Northwest, winter) to 6.5 PSH (Southwest desert). This number directly determines whether the 120W panel can fully recharge the 25AH battery in a single day.

A quick rule of thumb: if your location averages fewer than 4 PSH in the worst month (typically December), plan for a 3-day autonomy buffer. The 25AH LiFePO4 battery in the 50W unit provides approximately 2 nights of full runtime at 50% depth of discharge — adequate for most US locations with 4+ PSH.

1.3 Shading Analysis

This is where a lot of installations go sideways. Stadium environments often have bleachers, press boxes, scoreboards, and mature trees that cast shadows during critical charging hours (10 AM–2 PM). Use a solar pathfinder or a smartphone app like SunSurveyor to map obstructions. Any shading on the panel during peak hours will proportionally reduce daily charge — even partial shading can cut output by 30–50% depending on panel wiring configuration.

---

Phase 2: Wind Load Calculations — The Non-Negotiable Step

High-mast solar lights require precise wind load calculations. This isn't optional, and it's not something to eyeball. A 50W solar stadium light assembly — fixture head, solar panel, mounting bracket, and pole — presents a significant wind sail area. In a 90 mph wind event (common in ASCE 7-22 exposure categories B and C), the lateral force on a 25-foot pole can exceed 800 lbs. Get the math wrong and you're filing an insurance claim.

2.1 Determine Your Wind Speed Design Criteria

The governing standard in the US is ASCE 7-22 (Minimum Design Loads and Associated Criteria for Buildings and Other Structures). Your local building department will specify the design wind speed for your jurisdiction — typically expressed as a 3-second gust speed in mph at a 700-year return period for Risk Category II structures.

Common design wind speeds by region:

• Midwest (Kansas, Oklahoma): 115–130 mph
• Gulf Coast (Texas, Louisiana, Florida panhandle): 130–160 mph
• Atlantic Coast: 115–140 mph
• Pacific Coast: 85–100 mph
• Interior West: 90–105 mph

2.2 Calculate the Effective Wind Area

For the 50W Rackora unit, the combined projected area of the fixture head and 120W monocrystalline panel is approximately 4.2 sq ft (fixture) + 7.5 sq ft (panel) = 11.7 sq ft total. Add the pole projected area (typically 1.5–2.5 sq ft for a 4" round steel pole at 25 feet) and you're looking at roughly 14 sq ft of wind-exposed surface.

Wind pressure formula: p = 0.00256 × Kz × Kzt × Kd × V²

• Kz = velocity pressure exposure coefficient (0.85–1.3 depending on height and terrain)
• Kzt = topographic factor (1.0 for flat terrain)
• Kd = wind directionality factor (0.85 for structures)
• V = design wind speed in mph

At 100 mph design wind speed, flat terrain, 25-foot height: p ≈ 0.00256 × 1.0 × 1.0 × 0.85 × 100² = 21.8 psf. Total lateral force on the fixture assembly: 21.8 × 11.7 = 255 lbs. That force is applied at the top of the pole, creating a bending moment at the base of 255 × 25 = 6,375 ft-lbs. Your pole and foundation must be engineered to resist this moment with appropriate safety factors.

2.3 Pole and Foundation Sizing

For most 50W solar stadium light installations in the 20–30 foot height range:

• Pole: Schedule 40 or 80 steel, 4" OD minimum for 20 ft, 5" OD for 25–30 ft. Galvanized finish for corrosion resistance.
• Foundation: Concrete pier, minimum 18" diameter × 4 feet deep in non-frost areas; 18" × 5–6 feet in frost-affected zones (frost depth + 12").
• Anchor bolts: 4× 3/4" diameter, L-shaped, embedded 18" minimum.
• Base plate: 3/8" steel minimum, 10" × 10" with 4-bolt pattern.

Always have a licensed structural engineer stamp the pole and foundation design for permitted projects. Many jurisdictions require this for any pole over 15 feet.

---

Phase 3: Mounting Height Evaluation

Mounting height is a balancing act between light distribution, wind load, and aesthetics. Too low and you get hot spots and glare. Too high and you're fighting exponentially greater wind loads and foundation costs.

3.1 Recommended Mounting Heights for 50W / 10,000LM

Application	Recommended Height	Coverage Area	Notes
Youth soccer / recreational field perimeter	20–25 ft	35' × 35' zone	Ideal for corner and sideline poles
Baseball / softball infield	25–30 ft	40' × 40' zone	Avoid foul territory glare
Tennis / pickleball court	18–22 ft	30' × 30' zone	Low glare critical for ball tracking
Parking lot / access road	15–20 ft	25' × 25' zone	Pair with 100W–400W Solar Flood Light for larger lots

3.2 Beam Angle and Tilt Optimization

The adjustable mounting bracket on the Rackora 50W unit allows ±30° tilt adjustment. For most field applications, a 15–20° downward tilt from horizontal gives the best balance of coverage area and uniformity ratio. Avoid tilting beyond 25° — at steeper angles you start creating a bright center spot with rapid falloff at the edges, which is exactly what you don't want for sports play.

The solar panel bracket is independently adjustable. Set the panel angle to match your latitude (e.g., 35° tilt for Dallas, TX; 42° for Chicago, IL) for maximum annual energy harvest. In winter months, a steeper panel angle (latitude + 15°) improves low-sun-angle capture.

---

Phase 4: Installation — Step-by-Step

Step 1: Foundation Preparation

1. Mark the pole location and call 811 (Dig Safe) at least 3 business days before excavation.
2. Excavate to the required depth (see Phase 2 above). Use a power auger for clean cylindrical holes.
3. Set anchor bolt template at the correct bolt circle diameter (match your base plate). Use a level and temporary bracing to hold the template plumb.
4. Pour concrete (minimum 3,000 PSI mix). Vibrate to eliminate voids around anchor bolts.
5. Allow 7 days minimum cure time before loading the pole. 28-day full cure is ideal.

Step 2: Pole Erection

1. Inspect the pole for straightness and galvanizing integrity before lifting.
2. Use a crane or boom truck for poles over 20 feet. Never hand-set a pole with a fixture assembly already attached.
3. Set the pole on anchor bolts, install leveling nuts, and check plumb in two perpendicular directions.
4. Install top nuts and torque to the pole manufacturer's specification (typically 75–100 ft-lbs for 3/4" bolts).
5. Install base cover plate if specified.

Step 3: Fixture and Panel Mounting

1. Assemble the fixture head to the mounting bracket on the ground. Do not work at height with loose components.
2. Orient the solar panel to face true south (not magnetic south — account for declination). Use a compass app with declination correction.
3. Set panel tilt angle per your latitude calculation.
4. Attach the assembled bracket to the pole tenon. Torque all fasteners to spec. Use thread-locking compound (Loctite 243 or equivalent) on all stainless hardware exposed to vibration.
5. Route the panel-to-controller cable through the pole interior if possible, or use UV-rated conduit on the exterior.

Step 4: Electrical Connections

1. The 50W Rackora unit is a self-contained system — the solar panel, charge controller, and LiFePO4 battery are integrated. There is no external AC wiring required.
2. Connect the panel output cable to the controller input. Polarity is marked — double-check before connecting.
3. Connect the battery leads. The controller will initialize and display a status indicator.
4. Verify the dusk-to-dawn sensor is unobstructed and not facing the panel (false triggering).
5. If the unit includes a motion sensor, set the sensitivity and timeout per the controller instructions.

Step 5: Initial Commissioning

1. Allow the battery to reach at least 80% charge before the first night of operation (typically 1 full sunny day).
2. At dusk, verify the fixture activates automatically.
3. Check beam aim and adjust bracket tilt if needed. Use a lux meter to verify foot-candle levels at the target zone.
4. Document the installation: GPS coordinates, mounting height, panel angle, battery state of charge at commissioning, and any site-specific notes.

---

Wind Resistance Rating and Mounting Height Evaluation Checklist

Use this checklist on every solar stadium light installation. It's designed to be completed during the site survey phase, before any equipment is ordered.

Section A: Site Wind Data

• ☐ ASCE 7-22 design wind speed confirmed with local AHJ: ______ mph
• ☐ Exposure category determined (A / B / C / D): ______
• ☐ Topographic factor (Kzt) calculated: ______
• ☐ Risk category confirmed (typically II for sports facilities): ______
• ☐ Wind pressure (p) calculated at fixture mounting height: ______ psf
• ☐ Total lateral wind force on fixture assembly calculated: ______ lbs
• ☐ Base bending moment calculated: ______ ft-lbs

Section B: Pole and Foundation

• ☐ Pole OD and wall thickness specified: ______
• ☐ Pole material and finish confirmed (galvanized steel / aluminum / fiberglass): ______
• ☐ Foundation diameter and depth specified: ______
• ☐ Anchor bolt size, quantity, and embedment depth confirmed: ______
• ☐ Structural engineer stamp required? (Y / N): ______
• ☐ Building permit pulled: ______
• ☐ 811 Dig Safe call made (date): ______

Section C: Mounting Height Evaluation

• ☐ Target foot-candle level confirmed with facility manager: ______ fc
• ☐ IES lighting class determined: ______
• ☐ Mounting height selected: ______ ft
• ☐ Fixture beam angle and tilt set: ______°
• ☐ Coverage zone mapped (no dark spots or excessive overlap): ______
• ☐ Glare analysis completed (no direct glare into player or spectator sightlines): ______

Section D: Solar Resource

• ☐ Peak sun hours (PSH) for worst month confirmed: ______ hrs/day
• ☐ Shading analysis completed (no obstructions 9 AM–3 PM): ______
• ☐ Panel azimuth set to true south: ______
• ☐ Panel tilt angle set to latitude: ______°
• ☐ Battery autonomy adequate for local PSH: ______ nights

Section E: Commissioning Sign-Off

• ☐ Battery charged to 80%+ before first night: ______
• ☐ Dusk-to-dawn activation verified: ______
• ☐ Foot-candle levels measured and documented: ______
• ☐ All fasteners torqued to spec: ______
• ☐ Installation documentation completed: ______

---

Common Installation Mistakes (And How to Avoid Them)

Mistake 1: Skipping the Wind Load Calculation

"It's just a light pole" is the most expensive sentence in solar installation. High-mast solar lights have a much larger wind sail area than conventional luminaires because of the solar panel. Always calculate. Always document.

Mistake 2: Pointing the Panel at Magnetic South

Magnetic declination in the US ranges from about -20° (Pacific Northwest) to +20° (New England). In Seattle, magnetic south is actually 20° east of true south — a significant error that can reduce annual energy harvest by 5–15%. Use a declination-corrected compass or a GPS-based orientation tool.

Mistake 3: Mounting the Dusk Sensor Facing the Panel

The dusk-to-dawn sensor reads ambient light to determine when to activate the fixture. If it has a line of sight to the solar panel, reflected light can fool it into thinking it's still daytime. Mount the sensor on the shaded side of the fixture head.

Mistake 4: Insufficient Foundation Cure Time

Concrete gains about 70% of its rated strength in 7 days and 99% in 28 days. Loading a pole before 7 days — especially in cold weather where cure is slower — risks anchor bolt pullout. Schedule accordingly.

Mistake 5: No Conduit for Panel Cables

UV degradation will destroy unprotected cable insulation within 2–3 years in direct sun exposure. Run all external cables in UV-rated conduit or use cables rated for direct sun exposure (XLPE or EPR insulation).

---

Maintenance Schedule for Sports Facility Managers

Once the lights are up, the maintenance burden is minimal — but not zero. Here's a practical schedule to share with your facility management team:

Monthly

• Visual inspection: check for physical damage, bird nesting on panels, or vandalism.
• Clean panel surface with a soft cloth and water if dust or pollen accumulation is visible. Dirty panels can lose 10–25% of output.

Quarterly

• Check all fasteners for loosening (vibration from wind cycles can back out hardware over time).
• Inspect cable conduit for cracking or UV damage.
• Verify dusk-to-dawn activation timing is still accurate (daylight hours shift seasonally).

Annually

• Full structural inspection of pole base and anchor bolts.
• Battery capacity check — LiFePO4 cells should retain 80%+ capacity after 2,000 cycles (roughly 5–6 years of daily cycling).
• Re-torque anchor bolts to specification.

---

Scaling Up: When the 50W Isn't Enough

The 50W / 10,000LM unit is the right tool for recreational fields, perimeter lighting, and smaller court applications. For larger venues or higher IES lighting classes, you have two paths:

Option 1: Add more 50W fixtures. More poles, more coverage zones, more flexibility in aiming. Works well for fields with existing pole infrastructure.

Option 2: Step up to a higher-wattage unit. The Rackora 80W–150W All-in-Two Solar Stadium Light delivers up to 20,000 lumens with an expandable dual-battery system (50AH–120AH) and ADC12 aluminum housing. Starting at $720.00, it's also a strong value for larger projects where fewer poles are preferred.

For parking lots, access roads, and perimeter security adjacent to the sports facility, the 100W–400W Solar LED Flood Light (from $99.00) is a cost-effective complement — same off-grid reliability, optimized for wide-area flood distribution rather than focused field lighting.

Rackora 100W–400W Solar Flood Light — from $99.00 → Shop Now

---

Frequently Asked Questions

Q1: Do I need a permit to install a 50W solar stadium light?

In most US jurisdictions, yes — any pole over 10–15 feet requires a building permit, and poles over 15–20 feet typically require a structural engineering stamp. Check with your local Authority Having Jurisdiction (AHJ) before starting. The permit process also triggers a 811 Dig Safe requirement before excavation.

Q2: How do I calculate how many fixtures I need for my field?

Start with your target foot-candle level (see IES lighting classes above). Use a photometric simulation tool (AGi32, DIALux, or the free Rackora photometric service) to model fixture placement. As a rough rule: one 50W / 10,000LM fixture at 25 feet covers approximately 35' × 35' at 10–15 fc. For a 200' × 300' field at Class IV, expect 8–12 fixtures minimum.

Q3: What happens on cloudy days or during extended overcast periods?

The 25AH LiFePO4 battery provides approximately 2 nights of full runtime at 50% depth of discharge. In regions with frequent multi-day overcast (Pacific Northwest, Great Lakes in winter), consider specifying the 80W–150W unit with the expanded 100AH+ battery option for 4–5 nights of autonomy.

Q4: Can these lights be used in hurricane-prone coastal areas?

Yes, but the pole and foundation must be engineered for the local design wind speed — which can reach 160+ mph in South Florida and coastal Texas. The fixture itself is IP66 rated (dust-tight and protected against powerful water jets), but the structural system is the critical variable. Always engage a licensed structural engineer for coastal installations.

Q5: What is the warranty on the Rackora 50W Solar Stadium Light?

Contact Rackora directly for current warranty terms. LiFePO4 batteries are typically warranted for 2,000+ charge cycles, and LED drivers for 50,000+ hours of operation. Warranty coverage may be affected by improper installation — which is another reason to follow this guide and document your work.

Q6: How do I orient the solar panel if the pole location doesn't allow true south facing?

Within ±30° of true south, the energy harvest penalty is relatively small (less than 5%). Beyond ±45°, you start seeing meaningful reductions. If site constraints force an east or west orientation, compensate by specifying a larger panel (if available as an option) or adding a second panel in a split-array configuration.

Q7: Can I dim the fixture to extend battery runtime?

Yes. The integrated charge controller on the Rackora 50W unit supports programmable dimming schedules. A common configuration: 100% output from dusk to 11 PM (peak usage hours), then 50% from 11 PM to dawn. This roughly doubles the effective battery runtime and is ideal for facilities that don't have late-night events every night.

Q8: What's the difference between the 50W all-in-one and the 80W–150W all-in-two design?

The 50W unit integrates the panel, battery, controller, and fixture into a single compact assembly — simpler installation, lower profile. The 80W–150W "all-in-two" separates the panel from the fixture/battery assembly, allowing independent aiming of the panel and the light head. This is advantageous when the optimal panel orientation and the optimal light aim direction are different — common in east-west oriented fields.

Q9: How do I handle snow accumulation on the solar panel?

The panel's glass surface is smooth and slightly warm during charging, which helps shed light snow. For heavy snow regions (Minnesota, Colorado, upstate New York), set the panel tilt angle steeper than latitude (latitude + 15°) to encourage snow slide-off. Avoid using metal scrapers on the panel surface — use a soft brush or foam squeegee.

Q10: Is there a motion sensor option for security applications adjacent to the sports facility?

Yes. For perimeter security and parking lot applications, the Rackora LiFePO4 Solar Flood Light with Motion Sensor (from $69.99) includes adaptive brightness and 20–24 hour runtime — purpose-built for security lighting where motion-triggered full brightness is the priority.

Rackora Solar Security Flood Light — from $69.99 → Shop Now

---

Ready to Spec Your Next Solar Stadium Lighting Project?

Whether you're quoting a single recreational field or a multi-field sports complex, the right solar lighting system starts with the right product and the right installation process. Here's a quick summary of the Rackora lineup for sports facility applications:

• 50W Solar LED Stadium Light — $1,199.00 — Best for recreational fields, court perimeters, and single-zone applications.
• 80W–150W All-in-Two Solar Stadium Light — from $720.00 — Best for larger fields, higher IES classes, and installations where panel and light aim need to be independent.
• 100W–400W Solar Flood Light — from $99.00 — Best for parking lots, access roads, and wide-area perimeter lighting.
• LiFePO4 Solar Security Flood Light — from $69.99 — Best for motion-triggered security lighting around the facility perimeter.

Have a project that needs a custom photometric layout or a volume quote? Contact the Rackora team — we work directly with contractors and facility managers on project specifications.
