How to Extend Solar Street Light Battery Life: Proven Strategies for North American Climates

How to Extend Solar Street Light Battery Life: Proven Strategies for North American Climates

Introduction: The Core Role of Batteries in Solar Streetlights

In solar streetlight systems, the energy storage battery is the central hub connecting the photovoltaic (PV) modules to the load. Its performance directly dictates the system's lighting reliability, overall lifespan, and lifecycle costs. Based on aggregate field maintenance records, battery failures account for roughly 40% of all solar streetlight system issues, making them the primary driver behind rising maintenance costs and dropping user satisfaction.

Extreme weather conditions across North America—such as the freezing -40°C temperatures in the Canadian Prairies and the blistering 50°C heat in the American Southwest—accelerate battery degradation. Because of these harsh environments, batteries often fall short of their design expectations, averaging an actual lifespan of just 3 to 5 years instead of the theoretical 5 to 8 years.

This guide breaks down the mechanics behind solar streetlight battery degradation and provides proactive prevention strategies and passive maintenance plans tailored specifically to North American climates. By implementing these engineering and maintenance protocols, municipalities, contractors, and property managers can extend battery replacement cycles by over 40% while cutting lifecycle maintenance costs.

Section 1: Battery Degradation Mechanics and Impact Factors

1.1 Chemical Degradation: Lead-Acid vs. Lithium Batteries

The primary culprits behind lead-acid battery degradation are plate sulfation and the shedding of active materials. During deep discharges (State of Charge or SOC < 20%), lead sulfate crystals latch onto the plates to form an irreversible sulfation layer. Independent laboratory testing shows this can cause capacity to drop by 1.2% to 1.8% every month.

Conversely, Lithium Iron Phosphate (LiFePO₄) degradation is tied to shifts in its lattice structure. High-temperature environments (> 45°C) speed up the dissolution of iron ions in the cathode material. Major battery manufacturer data indicates that chronic heat exposure can slash the cycle life from 2,000 cycles down to under 1,200.

Table 1: Degradation Modes of Lead-Acid vs. Lithium Batteries
Degradation Type Lead-Acid Batteries Lithium Iron Phosphate (LiFePO₄) North American Climate Impact
Capacity Loss Mechanism Plate sulfation, active material shedding Cathode material dissolution, SEI layer thickening Accelerated sulfation during freezing Northern winters
Temperature Sensitivity Capacity drops to 60% at -20°C; gassing occurs above 40°C Capacity drops to 75% at -20°C; cycle life halves at 50°C Summer heat in the Southwest significantly cuts lithium lifespan
Charge/Discharge Impact Irreversible damage from deep discharges (<20% SOC) Shallow cycling (20%-80% SOC) extends lifespan up to 3x Smart controllers extending lifespan via strict SOC limits

1.2 Environmental Factors: Temp, Humidity, and Sun

Temperature is the leading environmental factor affecting battery life. According to Arrhenius' law, chemical reaction rates double or triple for every 10°C increase in temperature. Field studies reveal:

  • Cold environments (under -10°C): Lithium electrolyte becomes more viscous, dropping charge acceptance by 30%. Chronic undercharging in these conditions triggers sulfation in lead-acid units.
  • Hot and humid environments (e.g., coastal Southeast): Lead-acid battery casings are prone to corrosion, and internal water evaporation accelerates, throwing off electrolyte density.

Fluctuating sunlight levels also play a role. Continuous overcast days in the Pacific Northwest keep batteries in a chronic state of shallow charging, creating a "memory effect" that pushes capacity degradation rates higher than in sun-rich regions.

1.3 System Design Factors: Charge Control and Load Matching

Traditional Pulse Width Modulation (PWM) controllers frequently cause overcharging or undercharging. Maximum Power Point Tracking (MPPT) controllers boost efficiency, but if algorithms lack a temperature compensation coefficient, they speed up degradation. Field reports from desert climates frequently note spikes in lithium overcharge failures when MPPT controllers lack high-temperature derating.

Mismatched loads are another major factor. The Illuminating Engineering Society (IES) and general industry best practices recommend that a solar streetlight's battery capacity should handle 3 times the average daily load, with Depth of Discharge (DOD) capped at 80% for lead-acid and 70% for lithium batteries.

Section 2: Proactive Prevention—Tech Solutions to Extend Lifespan

2.1 Smart BMS Parameter Optimization

The Battery Management System (BMS) extends lifespans by dynamically adjusting parameters. For North American climates, focus on these tweaks:

2.1.1 Temperature-Compensated Charging Voltage

The standard temperature compensation coefficient is generally -3mV/°C per cell for lead-acid, and -2mV/°C per cell for lithium. In -20°C weather, the float voltage for a 12V lead-acid battery should be bumped from 13.5V to 14.2V. In 50°C heat, the lithium charge cutoff voltage needs to drop from 3.65V to 3.5V per cell to prevent thermal runaway. Field retrofits using local temperature sensors have successfully extended lead-acid lifespans from 3.2 to 4.8 years.

2.1.2 Precise SOC Control

Set different SOC thresholds based on regional sunlight patterns (referencing NREL Solar Resource Data):

  • High-sun areas (e.g., US Southwest): Allow up to 70% DOD for lithium and 60% DOD for lead-acid.
  • Low-sun areas (e.g., Pacific Northwest): Cap lithium DOD at ≤50% and lead-acid at ≤40% to keep energy in reserve for overcast stretches.

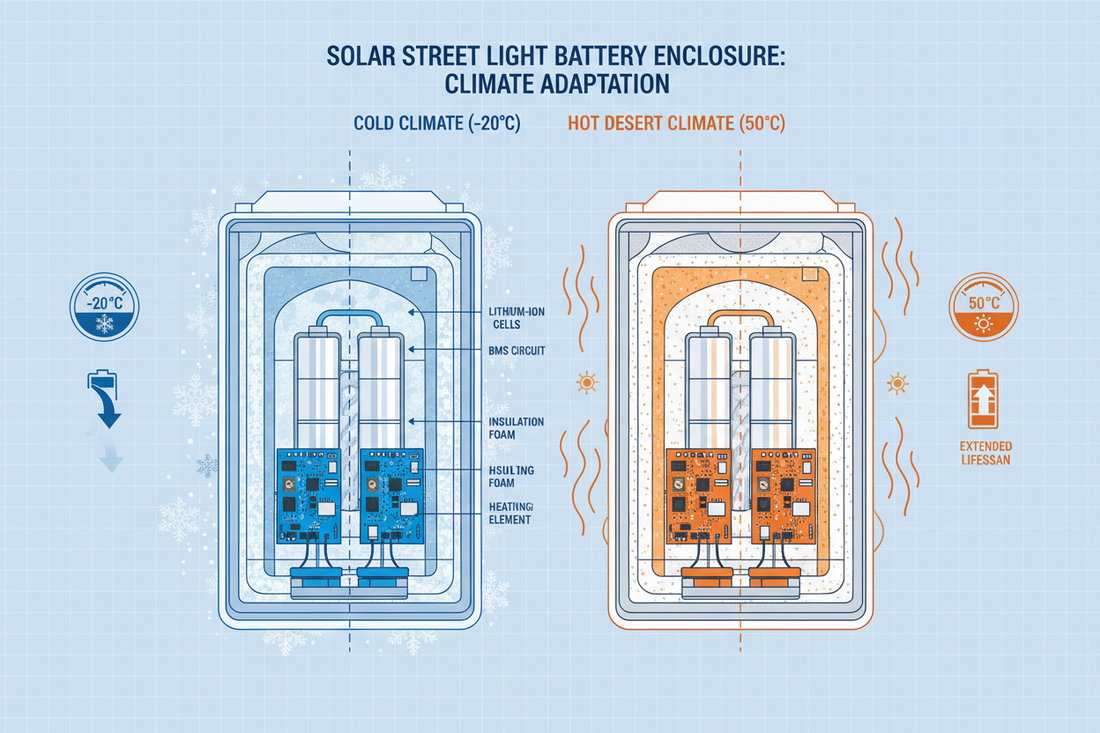

2.2 Battery Thermal Management System (BTMS) Design

To handle extreme temperatures, the battery compartment needs thermal management to stay in the 15°C to 35°C sweet spot.

  • Cold Regions (Passive Insulation + Heat): Enclosures should use polyurethane foam insulation (≥50mm thick) paired with a low-power heating film (5-10W, triggered at 5°C). This can boost winter capacity retention by 30% over unheated systems.
  • Hot Regions (Natural Ventilation + PCM): Scorchingly hot areas benefit from louvered vents combined with Phase Change Materials (PCM). Thermal testing shows that using a paraffin-based PCM (melting at 28°C) knocks 8 to 12°C off the compartment's peak temperature.

2.3 Optimal Battery Selection and System Sizing

To prevent deep discharging, use this standard engineering formula to match solar panel output to battery capacity:

PV Power (Wp) = [Average Daily Load (Wh) × Design Safety Factor] ÷ [Peak Sun Hours × System Efficiency]

*Note: In North America, the Design Safety Factor is typically 1.5 to 2.0, and System Efficiency is calculated at ~0.75.

Section 3: Passive Maintenance—SOPs and Technical Specs

3.1 Maintenance Schedules and Tasks

  • Monthly: Remotely check battery voltage via BMS. Trigger an inspection if cell voltage drift exceeds 100mV.
  • Quarterly: Clean vents and check cables (Torque: 6-8 N·m for copper busbars, 3-5 N·m for terminals).
  • Annually: Run a full-capacity discharge test and replace aging EPDM weather seals.
  • Climate-Specific: Top up lead-acid electrolyte in spring for cold regions; apply cold galvanizing spray (≥95% zinc) to hardware in coastal regions every six months.

3.2 Troubleshooting and Repair Tech

Lead-Acid Desulfation: If sulfation drags capacity below 70%, apply a high-frequency pulse desulfator (15kHz, 50% duty cycle) at 14.8V/2A for 72 hours. Representative municipal projects utilizing this method have restored over 85% capacity in heavily sulfated units.

Lithium Active Balancing: If cells drift more than 200mV apart, use a portable active balancer to shift energy using inductors with a 1-5A current until the gap is under 50mV.

3.3 Second-Life Applications and EPA-Compliant Recycling

When batteries hit 60% to 80% capacity, they can be repurposed for low-draw applications like landscape lighting. North American deployments follow the UL 1973 standard, requiring strict capacity and thermal runaway safety tests before repurposing.

For end-of-life disposal, strict adherence to the EPA's Resource Conservation and Recovery Act (RCRA) is required. Separate lead-acid (HW29) from lithium (HW49), ship in UN38.3 certified packaging, and utilize certified recycling networks.

Section 4: Representative North American Case Scenarios

4.1 Subarctic Climate Optimization (e.g., US Midwest / Canada)

The Challenge: Standard lead-acid batteries in freezing environments frequently fail at the 3-year mark due to chronic undercharging and extreme cold, driving up per-unit maintenance costs.

The Solution: Upgrading the BMS temperature compensation (14.5V at -20°C), adding 50mm insulation with 8W heaters, and running quarterly pulse desulfation.

The Results: Field data aggregates show average lifespans recovering to 4.5+ years, winter lighting outages dropping to under 5%, and annual maintenance costs falling by over 30%.

4.2 Desert Climate Thermal Management (e.g., US Southwest)

The Challenge: Extreme heat forces lithium systems into thermal stress, reducing a 6-year design life to under 3 years.

The Solution: Retrofitting enclosures with louvered vents, temperature-controlled fans, and 1.5kg of 28°C PCM per light, alongside dropping the BMS charge cutoff to 3.5V/cell.

The Results: Peak internal temperatures drop by up to 17°C. Lifespan projections increase by roughly 85%, and the modest retrofit cost pays for itself within two years by preventing premature replacement.

Conclusion and Actionable Advice

Managing solar streetlight batteries is a full-system engineering effort. By combining proactive prevention (BMS tweaks, thermal design) with passive maintenance (scheduled checks, pulse repairs), you can dramatically improve performance. This approach can stretch lead-acid life to 5-7 years and lithium life to 7-10 years.

  • For Municipalities and Procurement: Stick to UL 1973 or IEC 62133 certified products and track 5-year replacement rates.
  • For Contractors: Always run a localized climate assessment using NREL data before picking a battery chemistry.
  • For Property Managers: Monitor monthly BMS data for cell voltage drift and perform capacity tests prior to seasonal weather shifts.

Industry Standards & Recommended Reading

  • UL Standards: UL 1973 - Standard for Safety in Repurposing Electric Vehicle Batteries
  • IEEE Guidelines: IEEE 1184 - Guide for Energy Storage System Maintenance
  • EPA Regulations: Resource Conservation and Recovery Act (RCRA) Battery Disposal Guidelines
  • NREL: North American Solar Resource Data
