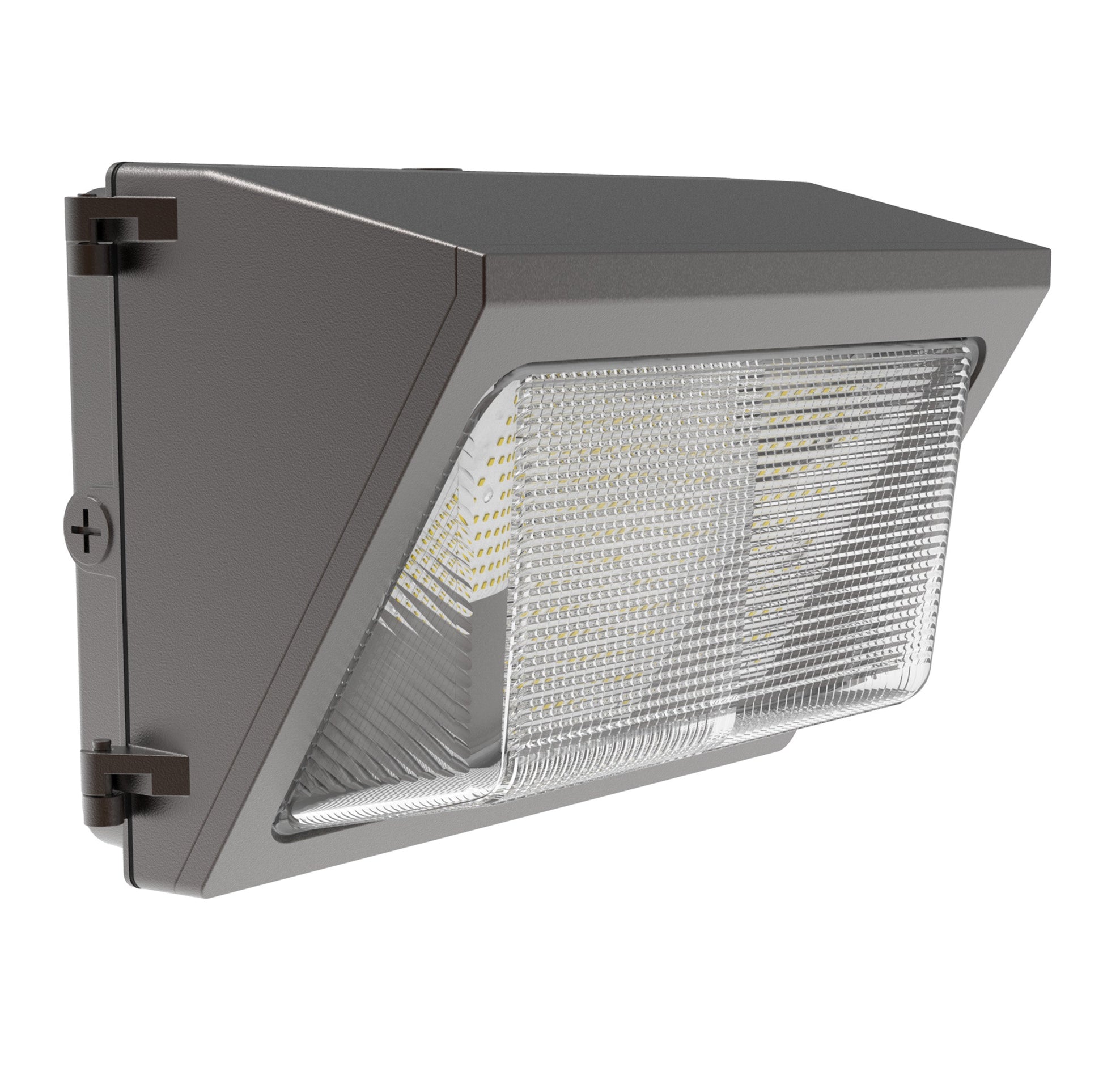

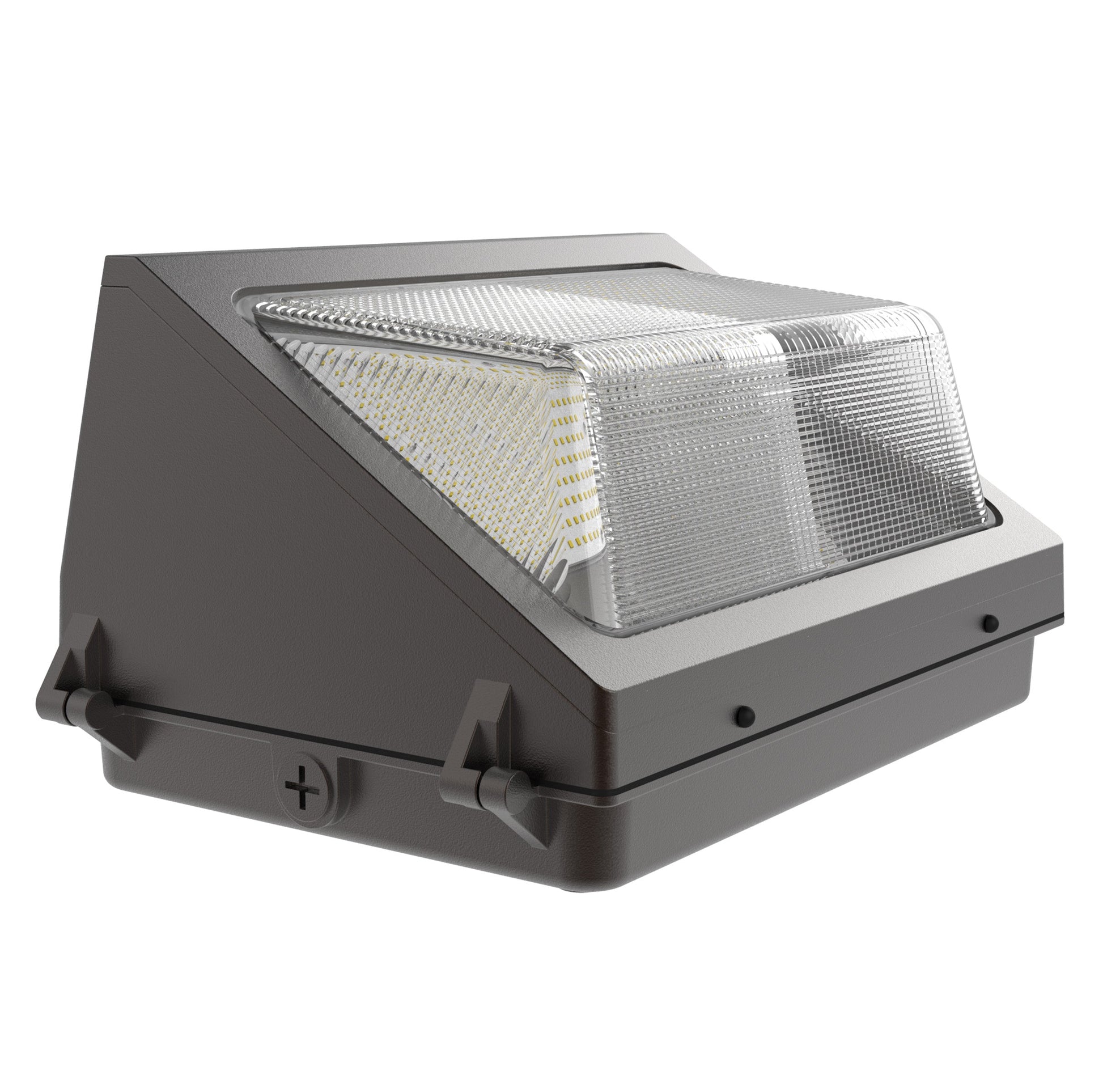

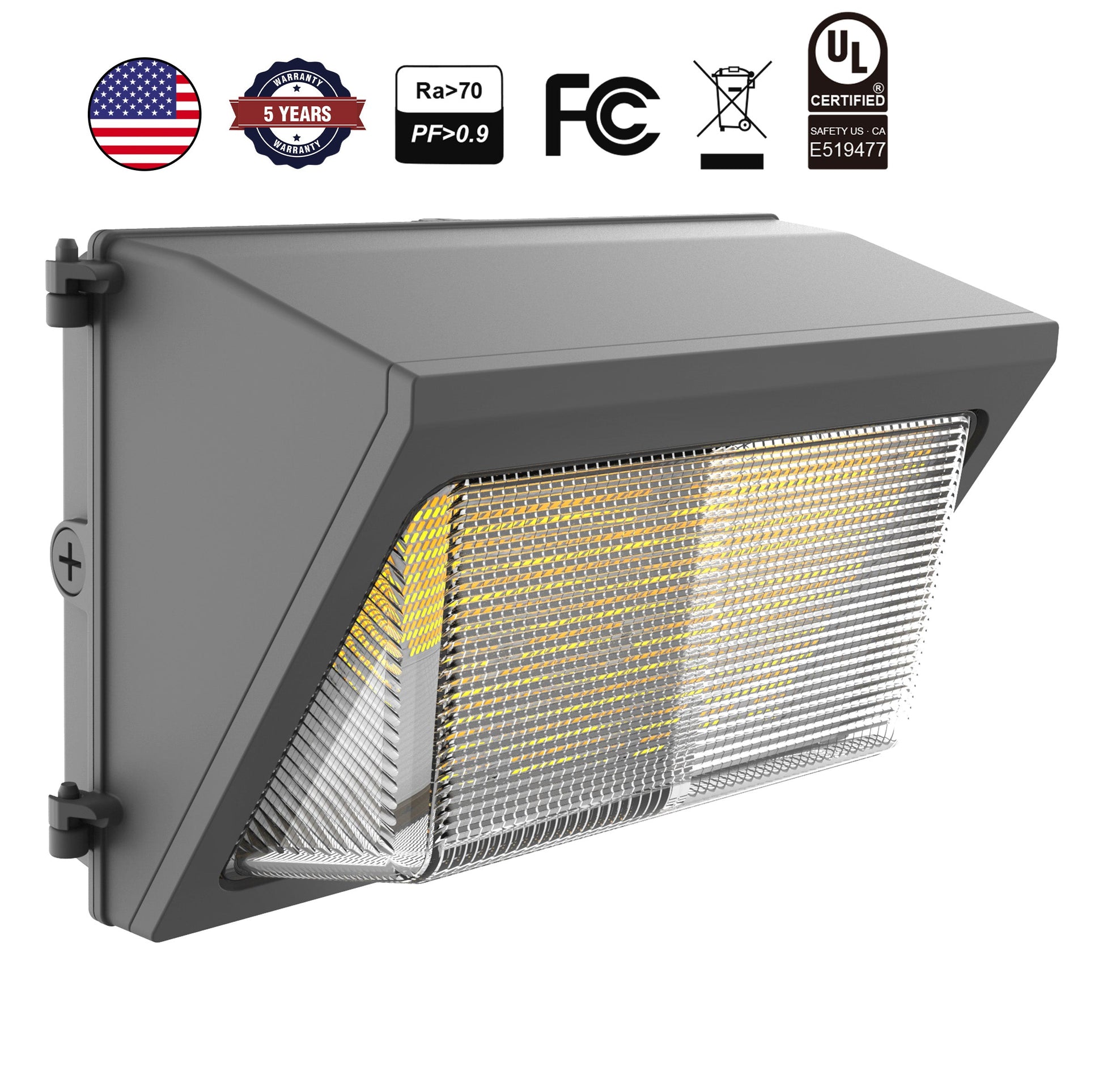

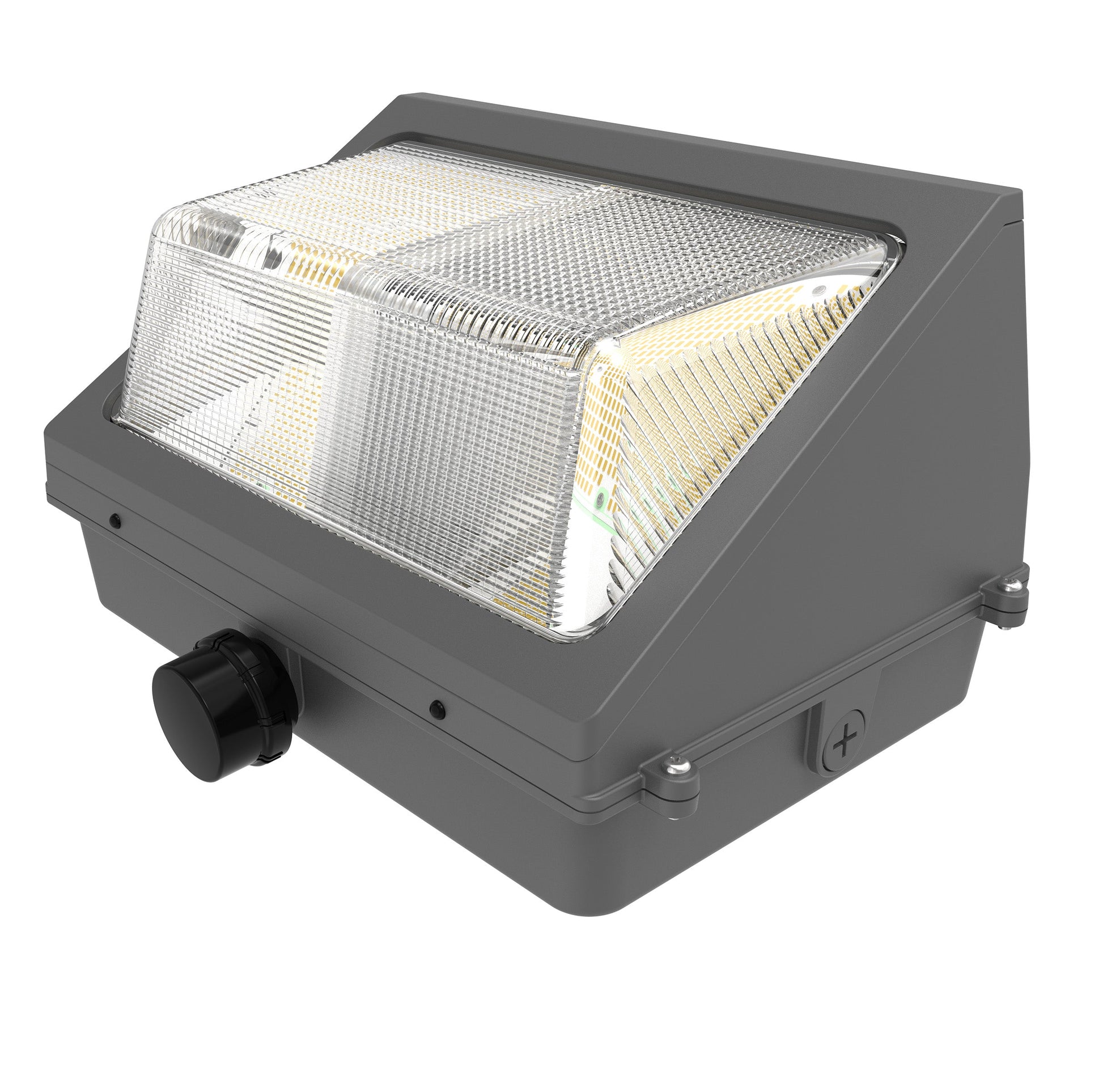

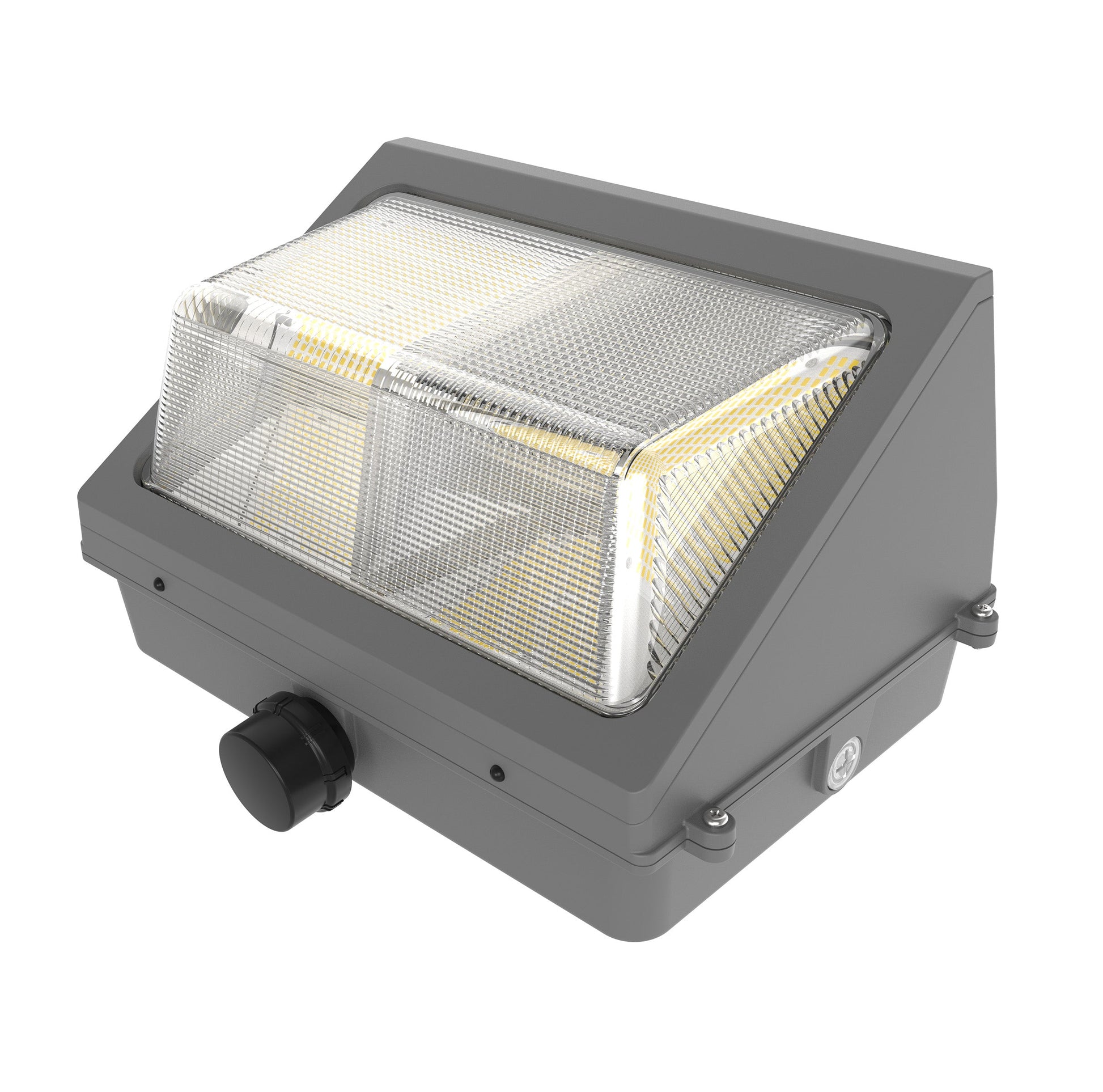

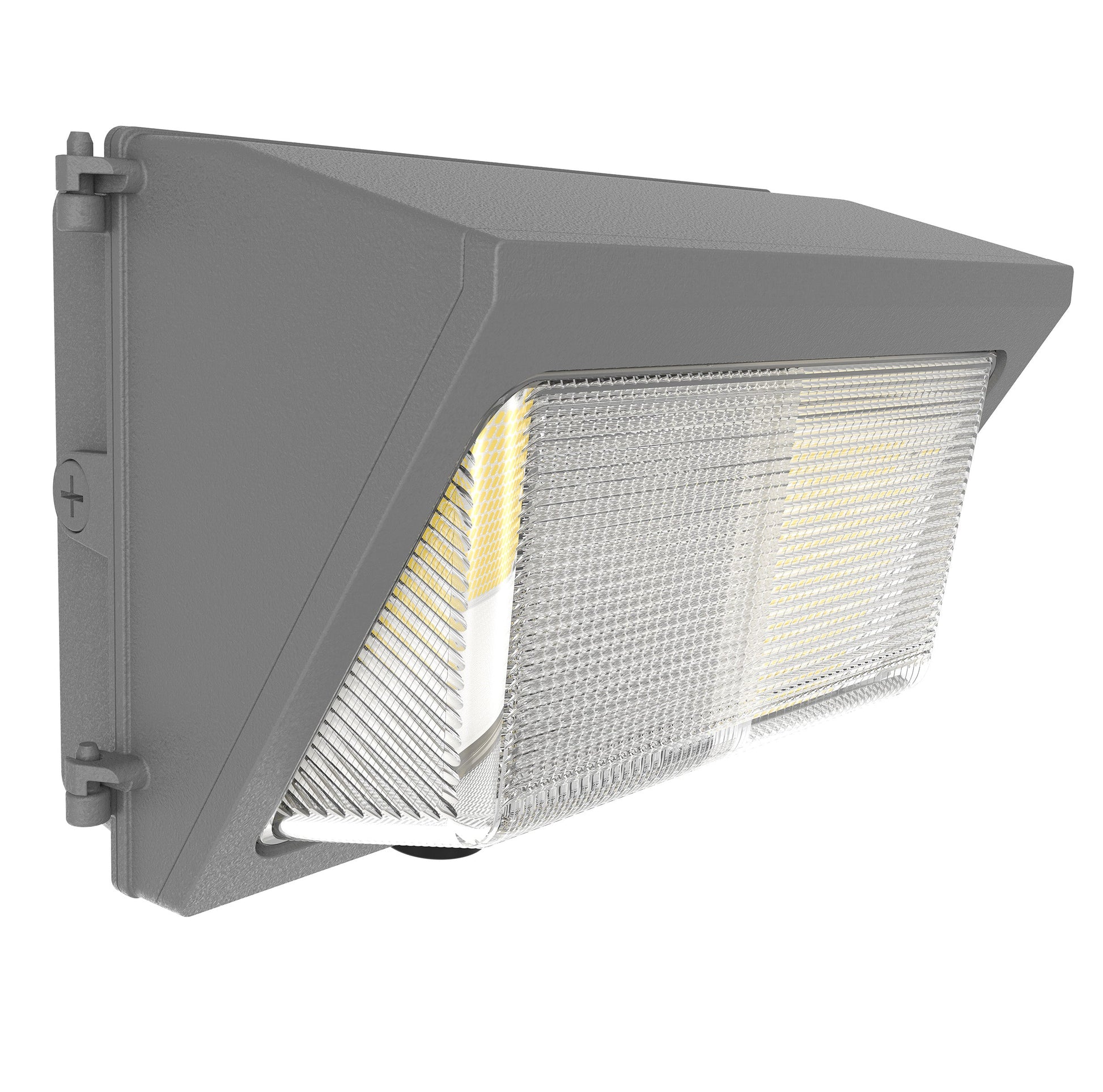

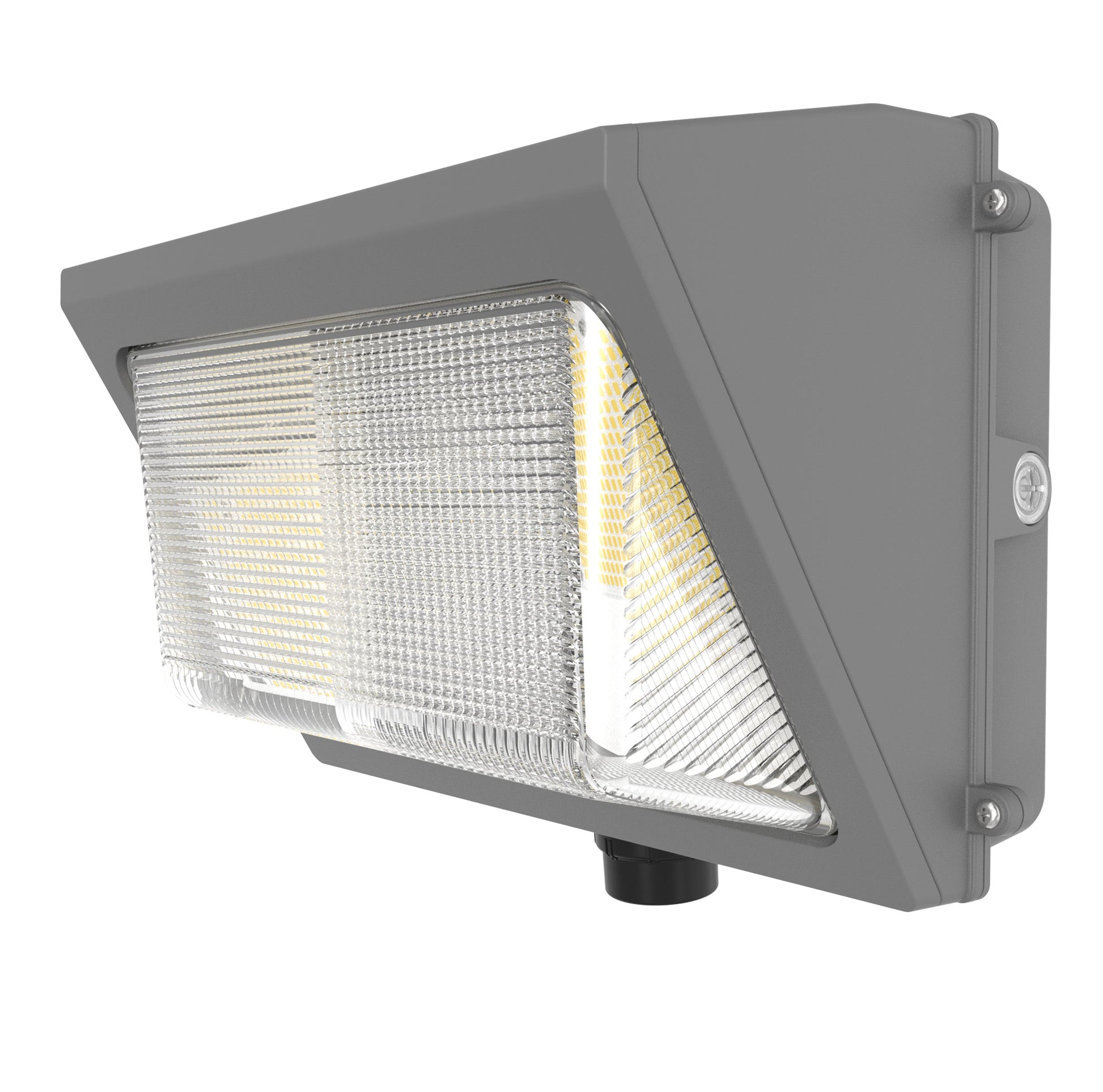

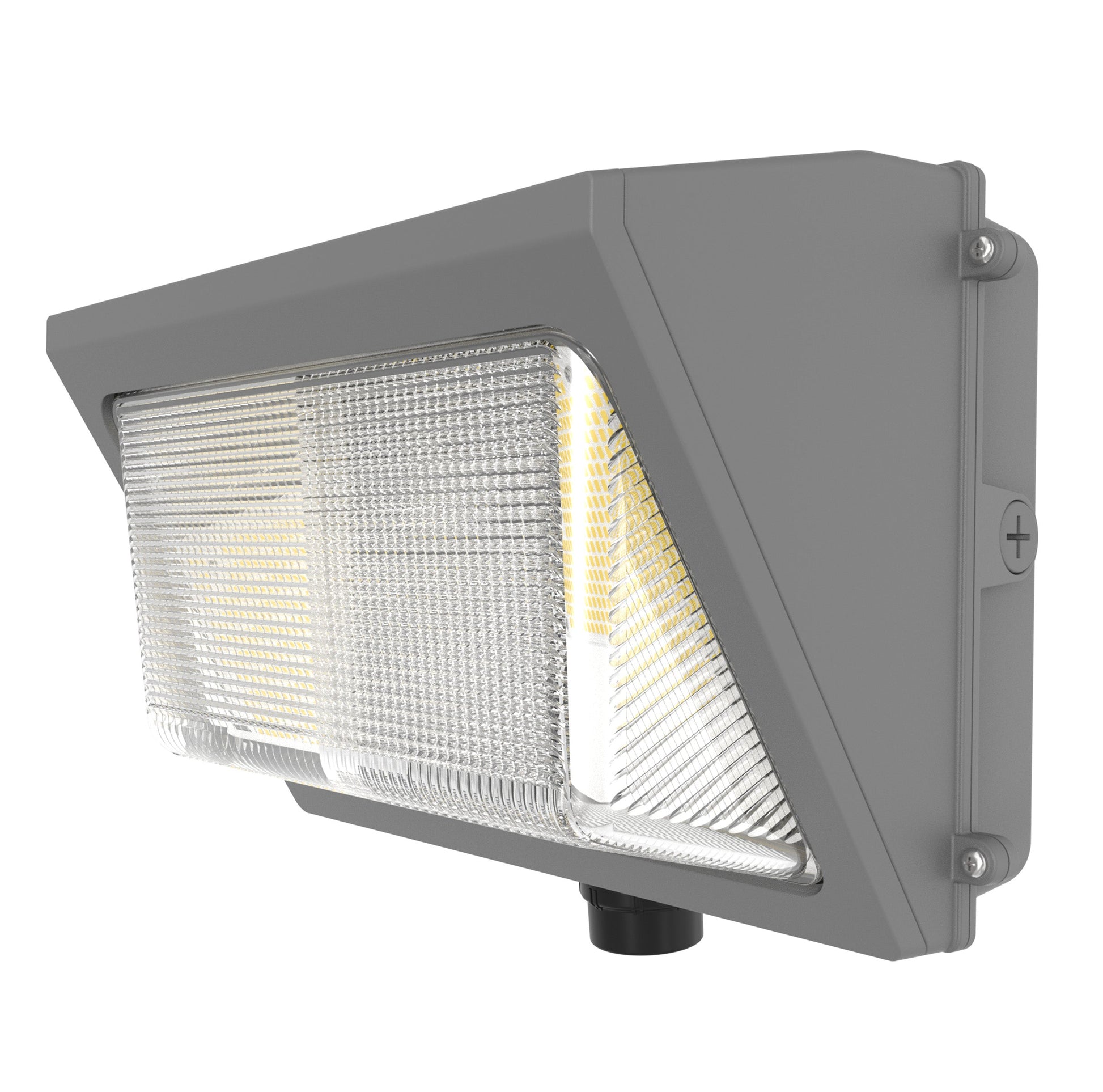

WK04 Series Half Cut Wall Pack - 40W-120W LED Outdoor Commercial Lighting

Premium LED Wall Pack for Commercial & Outdoor Applications

The WK04 Series Half Cut Wall Pack combines timeless utility with modern LED technology, delivering reliable illumination for commercial buildings, warehouses, parking areas, and outdoor spaces. Designed for straightforward installation using traditional junction box methods, this wall pack meets the demanding needs of most commercial and outdoor applications.

Sleek, Patented Design Built to Last

Featuring an aesthetic, patented appearance with high-transparency tempered glass, the WK04 delivers superior light output while maintaining a professional look. With an IP65 rating, this fixture provides complete protection against dust and water ingress, ensuring lasting performance in harsh weather conditions.

Customizable to Your Project Needs

Reduce inventory complexity with field-selectable power and color temperature (CCT) options. Adjust settings after installation to meet specific project requirements—choose from 40W, 60W, 100W, or 120W tunable wattage options to optimize energy efficiency and light levels for your space.

Key Features & Benefits

• High Efficiency: 130 lumens per watt (LPW) for maximum energy savings
• Flexible Installation: Easy junction box mounting with optional low-voltage light control sensor compatibility
• Advanced Dimming: Compatible with 0-10V dimming systems for precise light control
• Wide Voltage Range: Available for AC120-277V, AC120-347V, or AC277-480V input
• Weather Resistant: IP65 wet location rated for complete outdoor protection
• Long Lifespan: Over 50,000 hours of reliable operation
• Superior Color Rendering: CRI >70 for accurate color representation
• Extreme Temperature Performance: Operating range from -40°F to 113°F
• High Power Factor: >0.9 PF and >90% driver efficiency for optimal performance

Technical Specifications

• Wattage: 40/60/100/120W Tunable
• Efficacy: 130 LPW
• CRI: >70
• Input Voltage Options: AC120-277V, AC120-347V, AC277-480V
• Driver Efficiency: >90%
• Protection Level: WET (IP65)
• Working Temperature: -40°F to 113°F
• Storage Temperature: -40°F to 158°F
• Lifespan: Over 50,000 hours
• Power Factor: >0.9
• Warranty: 5-year limited

Ideal Applications

Perfect for commercial buildings, warehouses, parking garages, loading docks, building perimeters, walkways, and any outdoor area requiring reliable, energy-efficient illumination.

Backed by a 5-year limited warranty, the WK04 Series Half Cut Wall Pack is your trusted solution for long-term commercial lighting performance.
