WK06 Series LED Wall Pack - 40W to 120W Tunable, DLC Premium 5.1 Certified

Premium LED Wall Pack for Commercial & Industrial Applications

The WK06 Series LED Wall Pack is engineered as the ultimate replacement for outdated metal halide fixtures, delivering dramatic reductions in energy consumption and maintenance costs. Built for the toughest outdoor environments, this commercial-grade wall pack combines rugged die-cast aluminum construction with advanced optical engineering to provide years of reliable, maintenance-free operation.

Unmatched Energy Efficiency & Rebate Eligibility

Achieve 130 lumens per watt efficiency while meeting DLC Premium 5.1 certification standards—qualifying your project for maximum utility rebates across the United States. With driver efficiency exceeding 90% and a power factor greater than 0.9, the WK06 delivers exceptional performance that translates directly to lower operating costs.

Total Installation Flexibility

Adapt to any project requirement with field-selectable wattage (40W/60W/100W/120W) and tunable CCT options. No need to stock multiple SKUs—one fixture handles multiple applications. The 0-90° adjustable mounting angle and traditional junction box compatibility ensure fast, straightforward installation, while 0-10V dimming and low-voltage sensor compatibility provide complete lighting control.

Built to Last in Harsh Environments

• Rugged Die-Cast Aluminum Housing: Excellent heat dissipation extends component life and maintains consistent light output
• UV-Stabilized PC Lens: Optically advanced lens delivers uniform illumination with zero dark spots, even after years of sun exposure
• IP65 Weatherproof Rating: Complete protection against dust and water ingress for reliable wet-location performance
• Built-In Respirator: Prolongs internal component lifespan by managing thermal cycling and moisture
• Extended Temperature Range: Operates reliably from -40°F to 113°F

Professional-Grade Performance

With a CRI greater than 70 and a rated lifespan of over 50,000 hours, the WK06 provides consistent, high-quality illumination for parking lots, building perimeters, loading docks, and industrial facilities. Universal voltage compatibility (AC120-277V, AC120-347V, AC277-480V) ensures seamless integration into any electrical system.

Technical Specifications

• Wattage: 40/60/100/120W Tunable
• Efficacy: 130 LPW
• CRI: >70
• Input Voltage: AC120-277V, AC120-347V, AC277-480V
• Driver Efficacy: >90%
• Power Factor: >0.9
• Operating Temperature: -40°F to 113°F
• Storage Temperature: -40°F to 158°F
• Protection Level: WET (IP65)
• Lifespan: Over 50,000 hours
• Warranty: 5-year limited

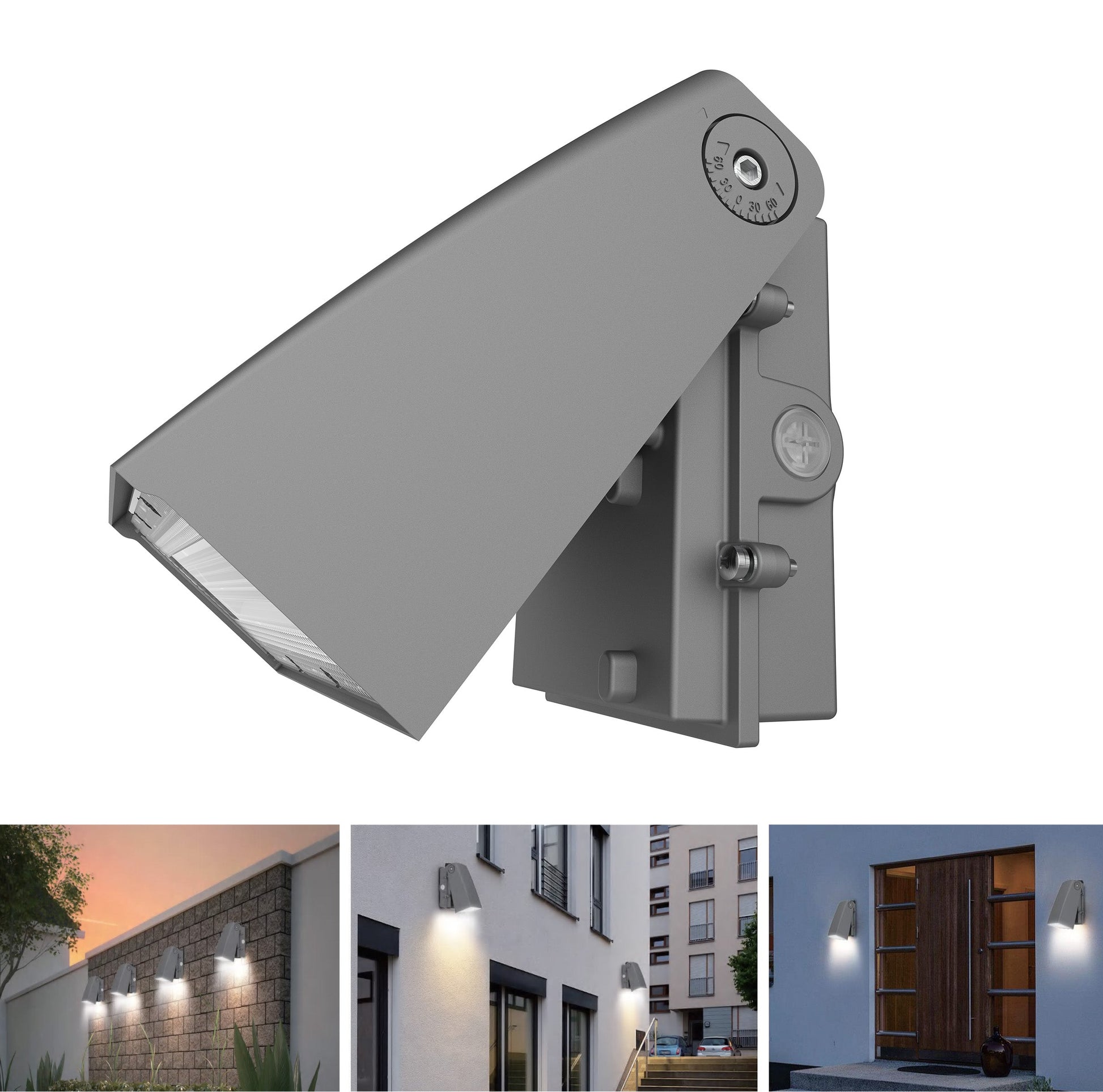

Ideal for: Commercial buildings, industrial facilities, warehouses, parking structures, loading docks, building perimeters, and any outdoor application requiring reliable, energy-efficient illumination.
