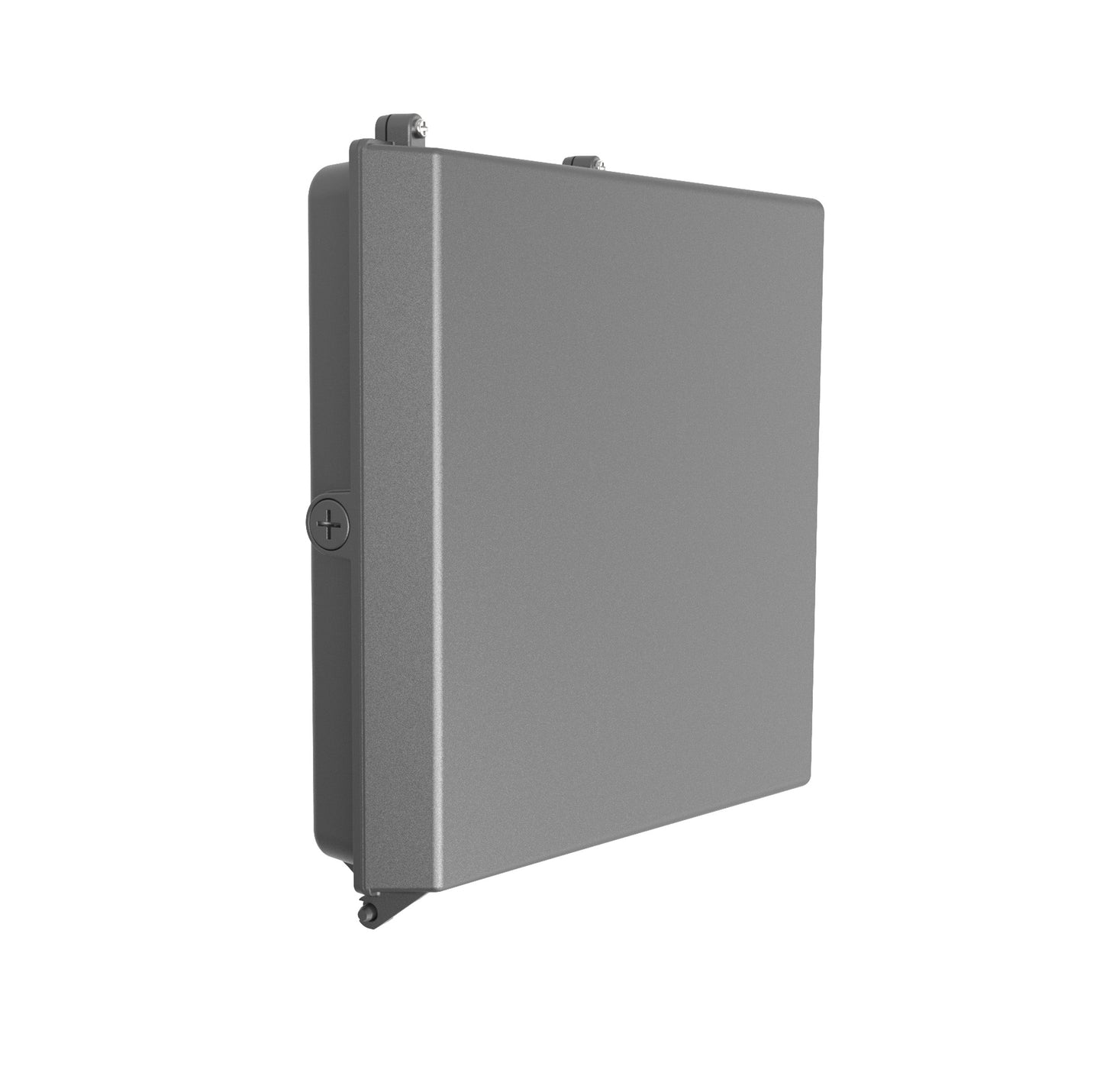

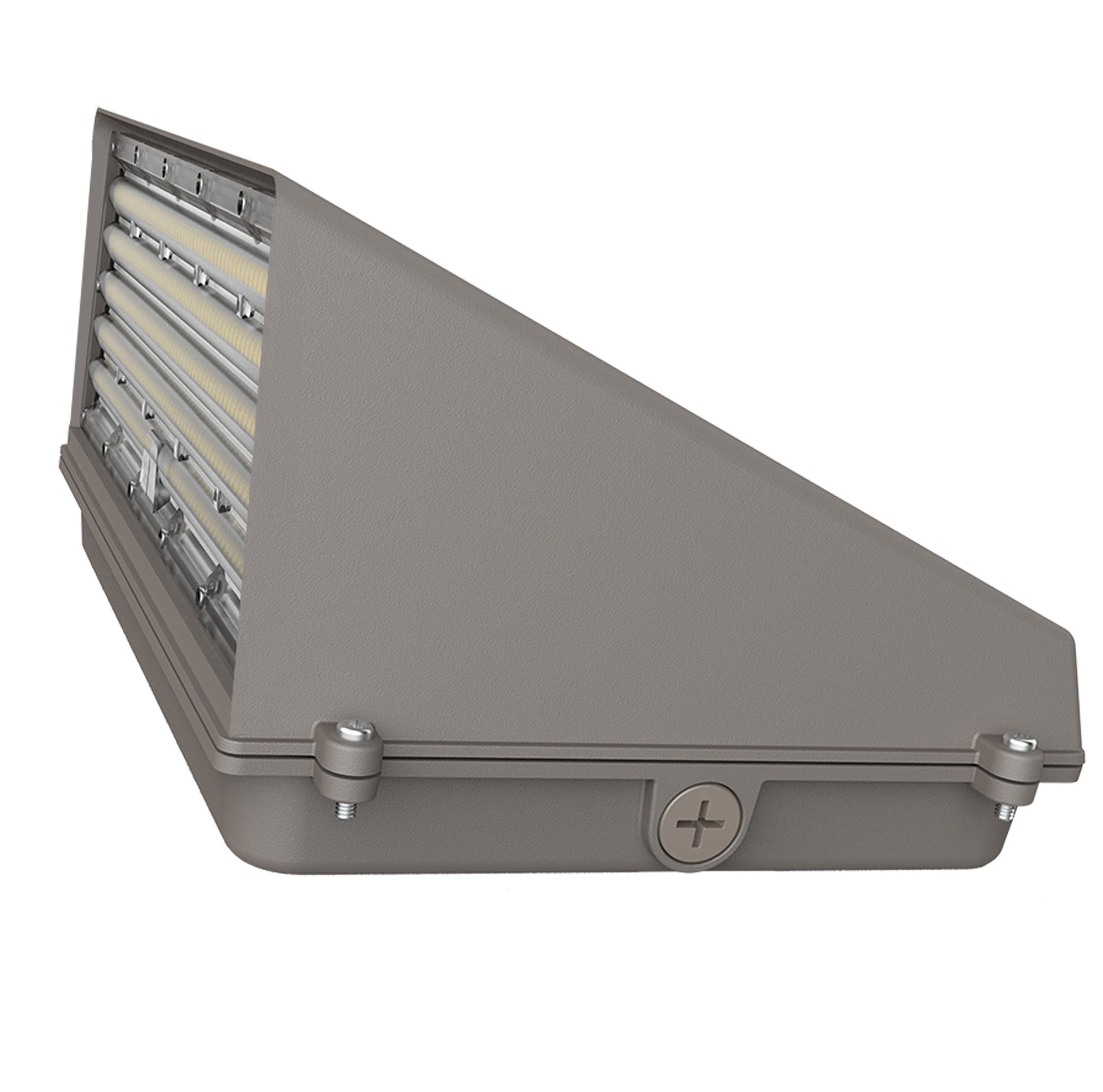

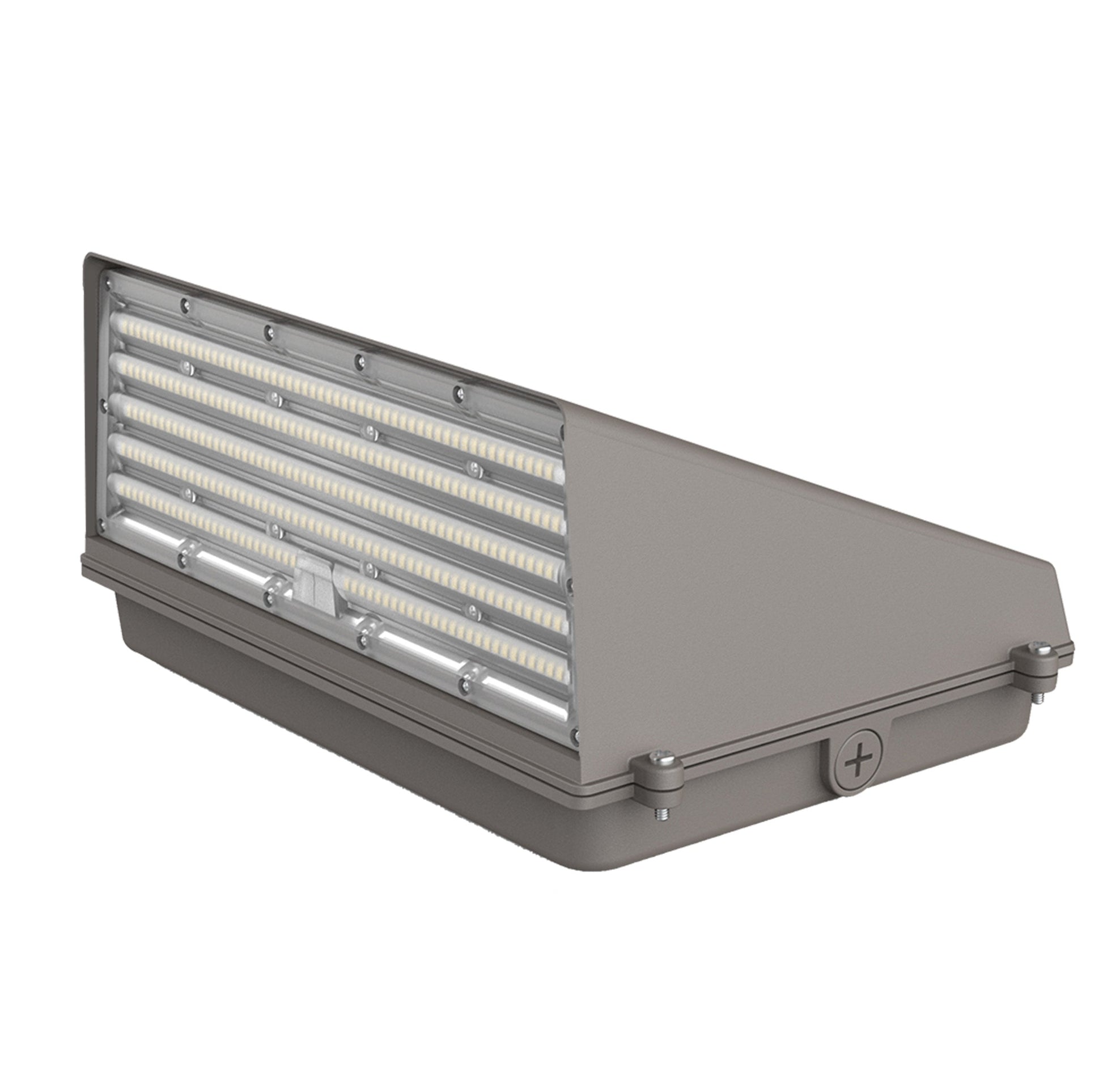

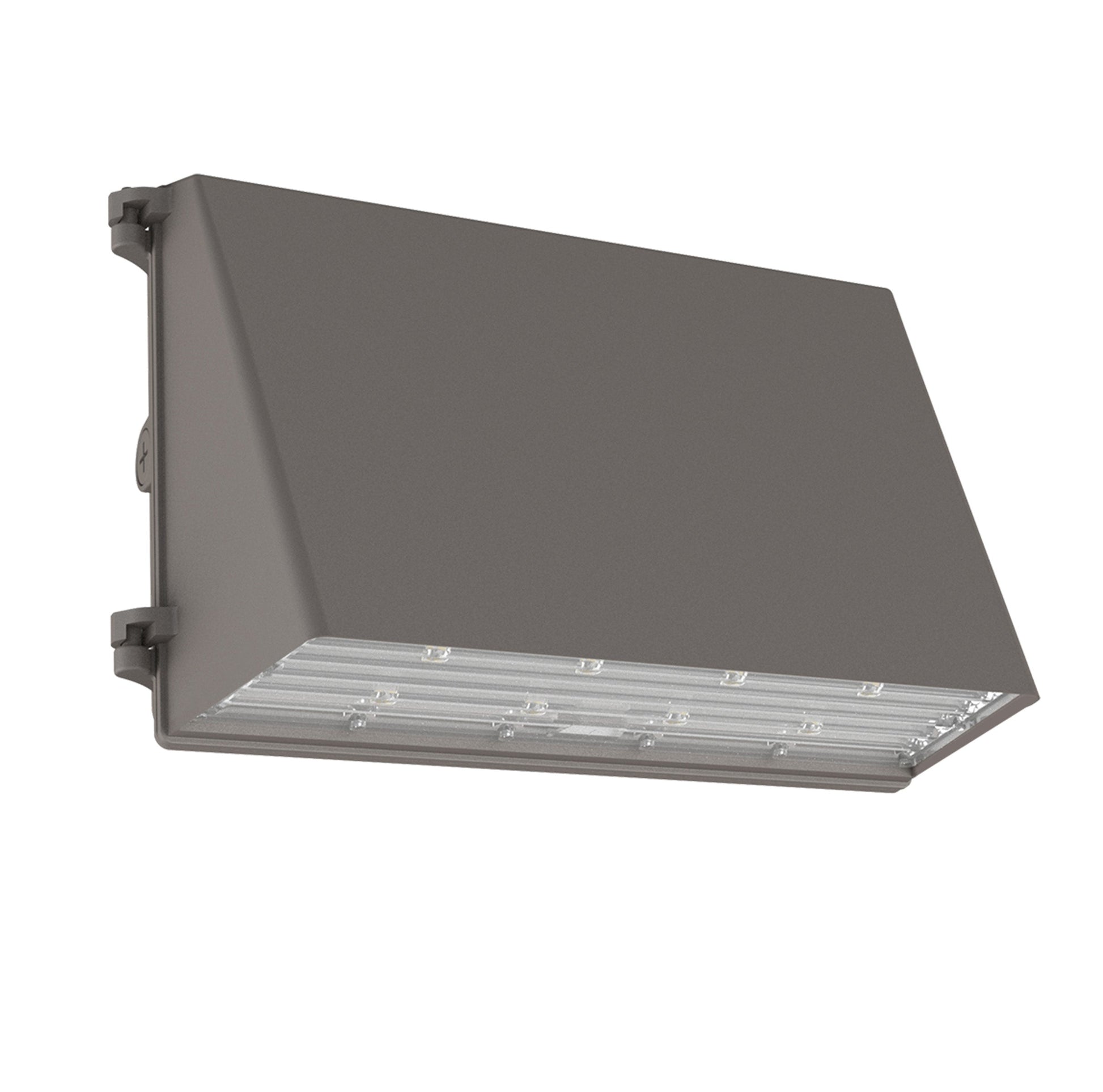

WK07 Series LED Wall Pack - Full Cutoff Commercial Outdoor Lighting 40W-120W

Premium Full Cutoff LED Wall Pack for Commercial & Outdoor Applications

The WK07 Series LED Wall Pack delivers superior performance and energy efficiency for building facades, parking areas, and walkways. This DLC Premium 5.1 certified fixture combines minimalist design with advanced LED technology, providing glare-free illumination while maximizing energy rebates.

Key Benefits

• Maximum Energy Savings: DLC Premium 5.1 certified with 130 lumens per watt efficacy qualifies for utility rebates
• Zero Dark Spots: Full cutoff optics deliver even, comfortable lighting with complete glare control
• Flexible Configuration: Field-selectable wattage (40W/60W/100W/120W) and CCT settings adapt to any project
• Built to Last: IP65 weather protection, UV-resistant lens, and 50,000+ hour lifespan ensure long-term reliability

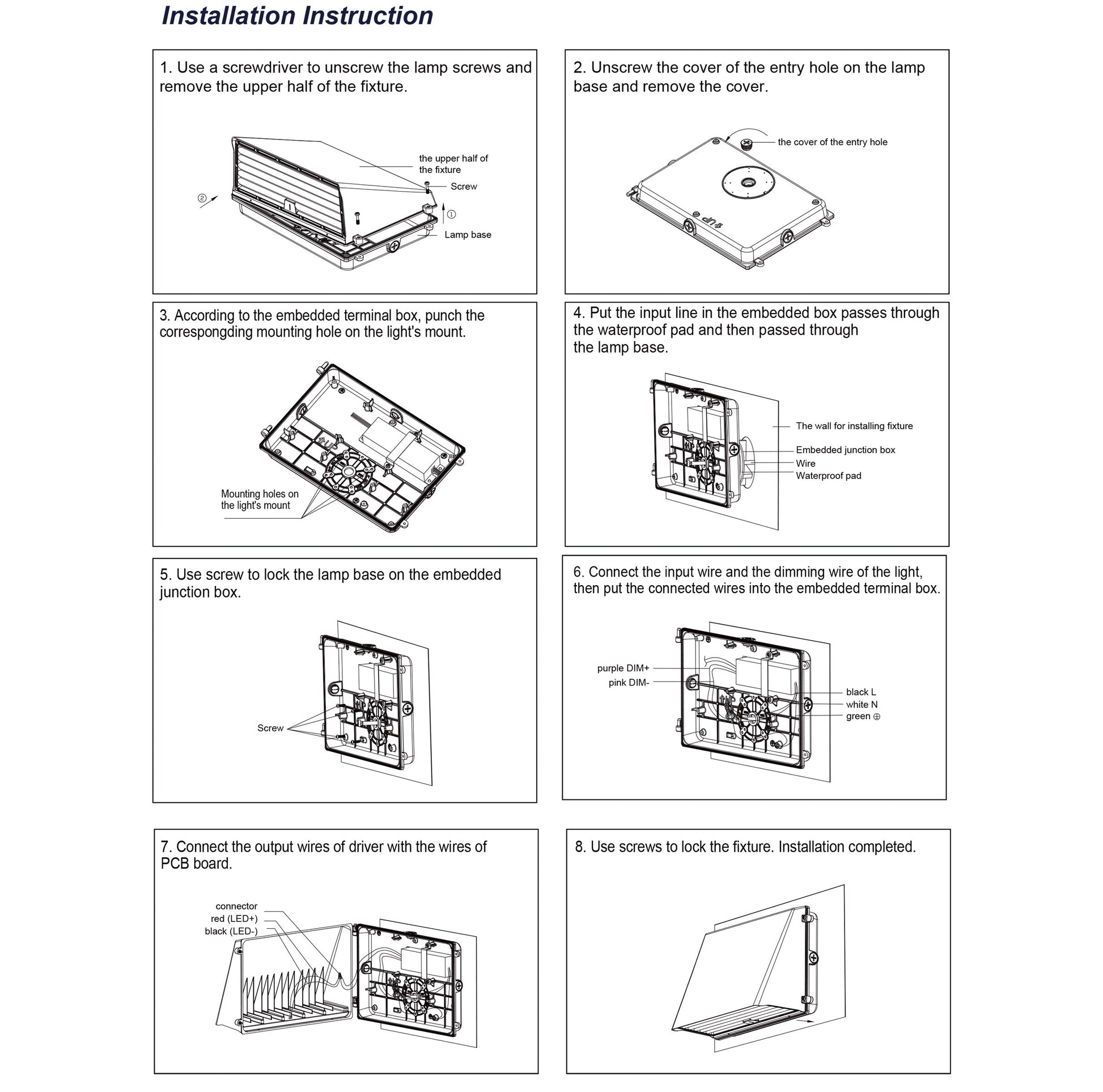

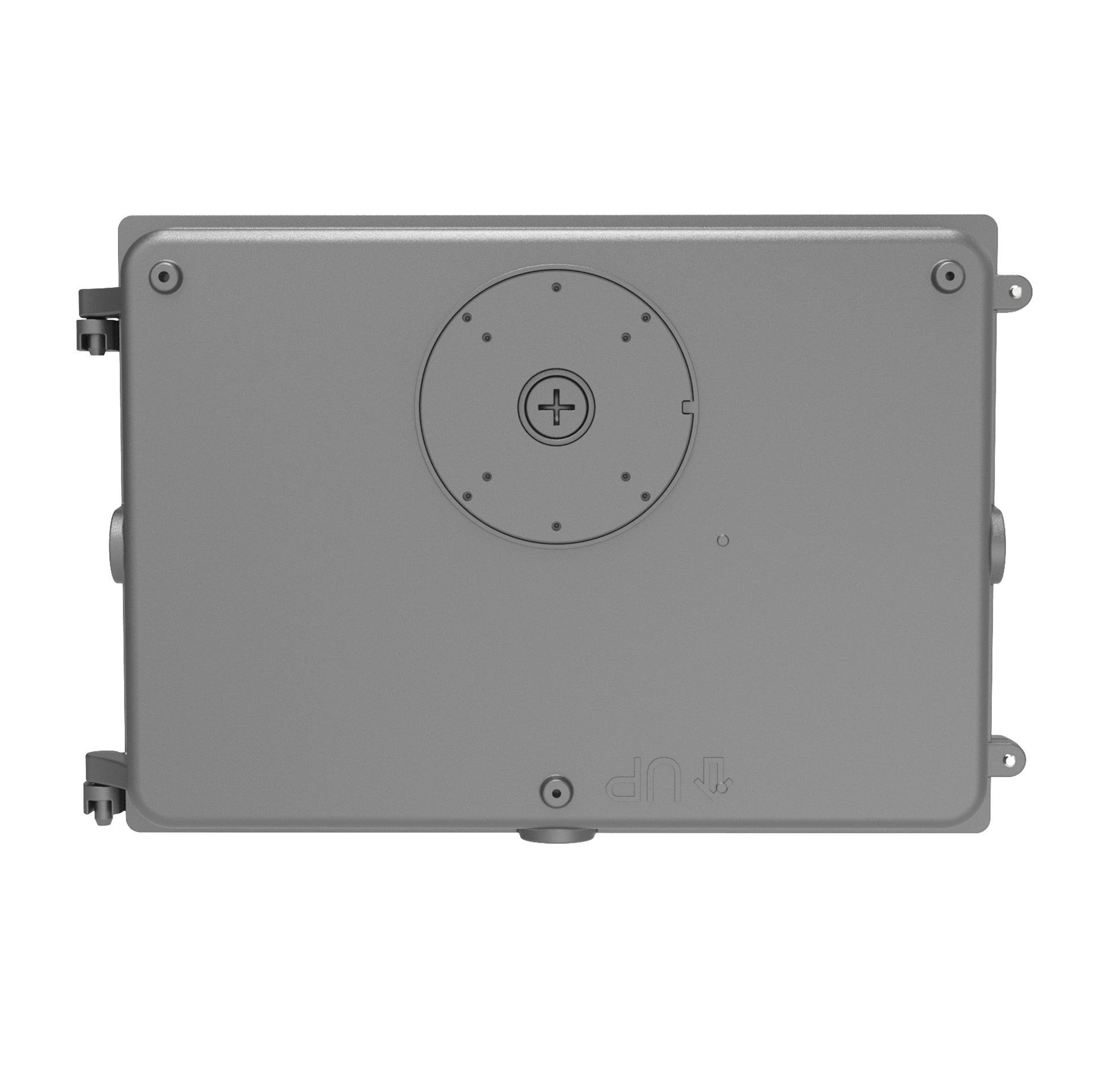

• Simple Installation: Traditional junction box compatibility with optional low-voltage sensor integration

Technical Specifications

• Wattage Options: 40W / 60W / 100W / 120W (field-selectable)
• Luminous Efficacy: 130 LPW
• Color Rendering Index: >70 CRI
• Input Voltage: AC 120-277V, AC 120-347V, AC 277-480V
• Driver Efficiency: >90%
• Power Factor: >0.9
• Dimming: 0-10V compatible
• Operating Temperature: -40°F to 113°F
• Storage Temperature: -40°F to 158°F
• Protection Rating: IP65 (wet location rated)
• Lifespan: Over 50,000 hours
• Warranty: 5-year limited

Advanced Features

• Patented aesthetic design with full cutoff optics
• UV-resistant polycarbonate lens for long-term clarity
• Standard respirator technology for extended reliability
• Wide voltage input compatibility (120-277V / 347V / 277-480V)
• Weather-resistant construction for all climates

Ideal Applications

Perfect for commercial buildings, parking structures, walkways, building perimeters, loading docks, and outdoor security lighting where energy efficiency and reliable performance are essential.

DLC Premium 5.1 Certified – Qualifies for maximum utility rebates and energy incentive programs across the United States.
