SOP: Pressure Testing and Maintaining IP66 Waterproof LED Fixtures
Let's Be Honest: IP66 Is Not a "Set It and Forget It" Rating
If you manage a commercial facility, you've probably heard this before: "Don't worry about those wall packs — they're IP66 rated. They're waterproof."
And technically, that's true. IP66 means the fixture has been tested to withstand powerful water jets from any direction. It's a serious rating. But here's what nobody tells maintenance crews: that rating applies to the fixture as it left the factory. After two years of UV exposure, freeze-thaw cycles, and a couple of Category 1 windstorms, the gasket that makes IP66 possible is a different story.
Water ingress is one of the top causes of premature LED driver failure in commercial outdoor fixtures. And the frustrating part? It's almost entirely preventable with a simple inspection protocol.
This SOP is written for maintenance crews — the people actually on ladders with screwdrivers, not the engineers who spec'd the fixtures. We'll walk through what to check, how to test, and when to escalate. No jargon overload. Just a practical checklist you can actually use in the field.
What IP66 Actually Means (And What It Doesn't)
The IP (Ingress Protection) rating system comes from IEC standard 60529. The two digits tell you two things:
- First digit (6): Dust-tight. No dust ingress whatsoever.
- Second digit (6): Protected against powerful water jets — 100 liters per minute at 100 kPa from any direction for at least 3 minutes.
That's genuinely impressive. But the test is done once, on a new fixture, in a controlled lab environment. It does not account for:
- Gasket compression set over time (rubber loses elasticity)
- UV degradation of silicone or EPDM seals
- Thermal cycling causing housing expansion and contraction
- Physical damage from hail, debris, or improper cleaning
- Improper reinstallation after a previous service call
The bottom line: IP66 is a starting point, not a lifetime guarantee. Treat it like a tire pressure rating — it's accurate when new, but you still check it regularly.
Tools and Materials You'll Need Before You Start
Before climbing the ladder, make sure you have the following on your cart or in your bag:
- Torque screwdriver (set to manufacturer spec — typically 0.5–1.2 Nm for M4/M5 cover screws)
- Silicone-compatible gasket lubricant (do NOT use petroleum-based lubricants)
- Replacement EPDM or silicone gaskets (match to fixture model)
- Isopropyl alcohol (90%+) and lint-free wipes
- Flashlight or headlamp
- Moisture indicator strips or a handheld hygrometer
- Low-pressure air source (optional, for blow-out testing)
- Camera or phone for documentation
- Lockout/tagout kit
Safety first: Always de-energize the circuit before opening any fixture housing. Confirm with a non-contact voltage tester before touching any internal components.
Numbered Maintenance Protocol: Water Ingress Prevention Checklist
Run through this checklist in order. Don't skip steps — the sequence matters because later steps can be affected by what you find earlier.
Step 1 — Visual Exterior Inspection
Start from the ground with binoculars if the fixture is high-mounted, then get closer once you're on the lift or ladder.
Look for:
- Cracks or chips in the housing (die-cast aluminum should have no visible fractures)
- Discoloration or staining around the lens or cover seam — this is often a sign of previous water intrusion
- Corrosion at mounting points or conduit entry
- Debris accumulation in drainage channels or weep holes
- Lens fogging or condensation visible from outside
Document everything with photos before touching anything. If you find fogging inside the lens, that's already a water ingress event — flag it for escalation and note the fixture ID.
Step 2 — Lockout/Tagout and De-Energize
Follow your facility's LOTO procedure. Confirm the circuit is dead with a non-contact voltage tester at the fixture's conduit entry point. Do not proceed until you have confirmed zero voltage.
Step 3 — Remove Cover and Inspect Gasket
Using your torque screwdriver, remove the cover screws in a cross pattern (like changing a tire) to release pressure evenly. Set screws aside in a magnetic tray so you don't lose them on the roof.
Once the cover is off, inspect the gasket:
- Compression set: Press the gasket with your thumb. It should spring back immediately. If it stays compressed or feels brittle, replace it.
- Cracking or splitting: Run your finger along the full perimeter. Any crack, no matter how small, is a failure point.
- Adhesion: The gasket should be firmly seated in its channel. If it's lifting or has shifted, it won't seal properly when the cover is reinstalled.
- Color change: EPDM gaskets that have turned from black to gray or brown are UV-degraded. Replace them.
If the gasket passes all four checks, clean the seating channel with isopropyl alcohol and a lint-free wipe before reinstalling. If it fails any check, replace it before proceeding.
Step 4 — Inspect the Interior for Moisture Evidence
Even if the gasket looks okay, check inside the housing for signs of past water ingress:
- White mineral deposits or rust streaks on the housing interior
- Corrosion on driver terminals or wire connectors
- Moisture indicator strips (if previously installed) showing color change
- Condensation on the inside of the lens
If you find any of these, the fixture has already been compromised. The driver may still be functional, but its lifespan is shortened. Document and flag for replacement planning.
Step 5 — Inspect Conduit Entry Points
This is the most commonly overlooked ingress point. Water doesn't always come through the gasket — it often travels up the conduit and enters through the back of the fixture.
Check:
- Conduit sealing fittings (liquidtight connectors) for cracking or looseness
- Conduit slope — conduit should slope away from the fixture, not toward it
- Sealant at conduit entry into the fixture housing — should be intact with no gaps
If conduit fittings are loose or cracked, replace them. Apply UL-listed conduit sealant at the entry point if not already present.
Step 6 — Clean the Lens and Housing Interior
Use a lint-free cloth dampened with isopropyl alcohol to clean the inside of the lens. Do not use abrasive materials — polycarbonate lenses scratch easily and scratches trap moisture.
Wipe down the housing interior to remove any dust accumulation. Dust combined with moisture accelerates corrosion.
Step 7 — Gasket Reinstallation or Replacement
If replacing the gasket:
- Remove the old gasket completely and clean the channel with isopropyl alcohol
- Allow the channel to dry fully (2–3 minutes)
- Apply a thin, even coat of silicone-compatible gasket lubricant to the new gasket
- Seat the gasket starting at one corner, working around the perimeter without stretching
- Confirm the gasket is fully seated with no gaps or overlaps at corners
If reusing the existing gasket (passed all checks in Step 3):
- Apply a thin coat of silicone-compatible lubricant
- Confirm seating before reinstalling cover
Step 8 — Cover Reinstallation and Torque Verification
Reinstall the cover screws by hand first, then torque in a cross pattern to manufacturer specification. Over-torquing is as bad as under-torquing — it can deform the gasket and create leak paths.
Typical torque specs:
- M4 screws: 0.5–0.8 Nm
- M5 screws: 0.8–1.2 Nm
- M6 screws: 1.5–2.0 Nm
If you don't have the manufacturer's spec sheet, use the lower end of the range for the screw size.
Step 9 — Low-Pressure Air Test (Optional but Recommended)
For critical fixtures (entry points, security cameras, high-value areas), a low-pressure air test can confirm the seal before re-energizing.
Method:
- With the cover reinstalled, apply 5–10 PSI of compressed air through a temporary fitting at the conduit entry
- Apply soapy water solution around the cover seam and conduit entry
- Watch for bubbles — any bubbling indicates a leak path
- If bubbles appear, identify the location, re-open, and address before proceeding
This test takes about 5 minutes per fixture and can save you from a callback in three months when the driver fails.
Step 10 — Re-Energize and Functional Test
Remove LOTO, restore power, and confirm the fixture illuminates normally. Check for:
- Normal startup (LED fixtures should reach full output within 30 seconds)
- No flickering or strobing
- Photocell or occupancy sensor functioning correctly (if equipped)
- Dimming response (if on a 0-10V dimming circuit)
Log the inspection date, technician name, findings, and any parts replaced in your CMMS or maintenance log.
Recommended Inspection Frequency
Not all fixtures need the same attention. Here's a practical framework:
- After any severe weather event (hail, hurricane, ice storm): Visual inspection within 48 hours. Full gasket inspection within 30 days.
- Annual inspection: Full protocol for all exterior fixtures, regardless of apparent condition.
- Bi-annual inspection: Fixtures in coastal environments (salt air accelerates gasket degradation), industrial environments with chemical exposure, or fixtures older than 5 years.
- Immediate inspection: Any fixture showing visible fogging, flickering, or reduced output.
Featured Products: IP66-Rated Commercial LED Fixtures
The fixtures below are the ones our maintenance teams work with most often. All carry IP66 ratings and are built with die-cast aluminum housings designed for long-term outdoor durability.

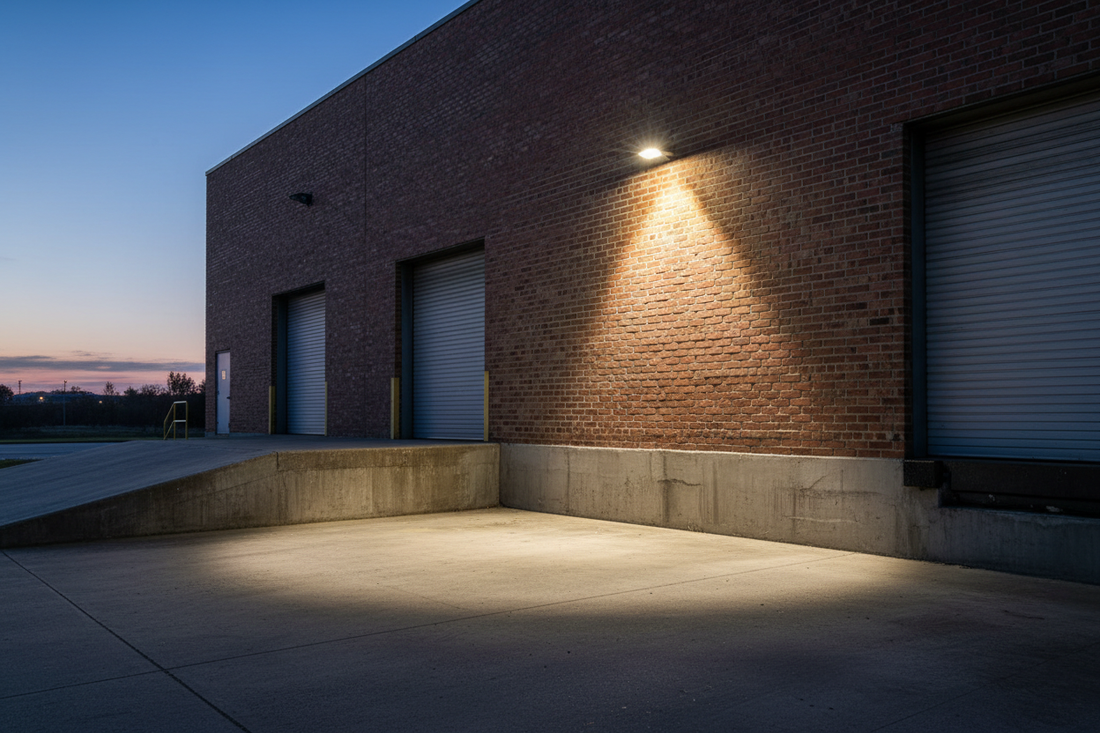

WK07 Series LED Wall Pack — Full Cutoff, 40W–120W
The WK07 is our most popular full-cutoff wall pack for commercial perimeter lighting. Die-cast aluminum housing, IP66 rated, DLC Premium certified. Available in 40W, 60W, 80W, and 120W configurations. Starting at $155.00.
WK06 Series LED Wall Pack — Tunable, 40W–120W, DLC Premium 5.1
The WK06 adds wattage tunability — one SKU covers 40W through 120W, selectable in the field. Ideal for facilities standardizing on a single fixture model across multiple mounting heights. DLC Premium 5.1 certified for utility rebate eligibility. Starting at $168.00.
WK04 Series Half-Cut Wall Pack — 40W–120W
The WK04 half-cut design provides broad-area illumination for loading docks, building sides, and parking structure entries. IP66 rated with a tempered glass lens for impact resistance. Starting at $129.00.
Shop WK04 Half-Cut Wall Pack →
AR07 150W Tunable LED Area Light — Commercial Outdoor
For parking lots and large outdoor areas, the AR07 150W delivers 150 LPW high efficacy with IP66 protection. The same gasket inspection protocol in this SOP applies directly to AR07 series fixtures. Starting at $179.00.
Calculate Your ROI Before You Replace
If your inspection reveals fixtures that are beyond serviceable life, it's worth running the numbers before you spec replacements. Our free ROI calculator factors in wattage reduction, utility rates, rebate eligibility, and maintenance cost savings.
🔢 Use the Free LED Retrofit ROI Calculator →
Common Mistakes That Void IP66 Protection
After years of field service calls, these are the mistakes we see most often:
1. Using the Wrong Cleaning Products
Petroleum-based solvents (WD-40, mineral spirits) degrade EPDM and silicone gaskets rapidly. Always use isopropyl alcohol for cleaning and silicone-compatible lubricant for gasket maintenance.
2. Pressure Washing Fixtures
IP66 is rated for 100 kPa water jets. A commercial pressure washer can easily exceed 1,000 kPa. Never pressure wash LED fixtures directly. Use a garden hose at low pressure if exterior cleaning is needed.
3. Over-Torquing Cover Screws
More torque does not mean a better seal. Over-torquing deforms the gasket, creating high-pressure points that actually allow water to bypass the seal. Use a torque screwdriver, not an impact driver.
4. Ignoring Conduit Slope
Water follows gravity. If conduit runs uphill toward the fixture, it acts as a funnel during rain events. This is a design issue, but maintenance crews can flag it and apply conduit sealant as a temporary mitigation.
5. Skipping Inspection After Hail Events
Hail can crack polycarbonate lenses and dent aluminum housings in ways that compromise the gasket seating surface. Always do a visual inspection after any hail event, even if the fixture appears to be working normally.
6. Reinstalling Without Cleaning the Gasket Channel
Dust and debris in the gasket channel prevent full compression. A 30-second wipe with isopropyl alcohol before reinstalling the cover is one of the highest-value steps in this entire SOP.
When to Replace Instead of Repair
Not every fixture is worth servicing. Here's a practical decision framework:
- Replace if: The housing has visible cracks or fractures that compromise structural integrity
- Replace if: The driver shows corrosion on terminals or has failed once already due to moisture
- Replace if: The fixture is more than 8–10 years old and gasket replacement parts are no longer available
- Replace if: The lens is yellowed or significantly scratched, reducing light output by more than 20%
- Service if: The gasket is degraded but the housing and driver are in good condition
- Service if: Conduit entry sealing is the only failure point
When replacement is the right call, use it as an opportunity to upgrade to a higher-efficacy fixture. A 120W fixture from 2015 likely delivers 90–100 LPW. Current DLC Premium fixtures deliver 140–160 LPW — meaning you can often drop wattage by 30–40% while maintaining or improving light levels.
🔢 Calculate Your Retrofit Savings →
Seasonal Maintenance Calendar
Build this into your facility's preventive maintenance schedule:
Spring (March–May)
- Full gasket inspection on all exterior fixtures after winter freeze-thaw cycles
- Check conduit entry points for frost heave damage
- Clean lenses of winter grime accumulation
- Test photocells after daylight saving time change
Summer (June–August)
- Inspect fixtures after any severe thunderstorm or hail event
- Check for UV-related gasket discoloration on south-facing fixtures
- Verify thermal management — fixtures running hot in summer are more susceptible to gasket compression set
Fall (September–November)
- Pre-winter inspection: replace any marginal gaskets before freeze season
- Clear debris from drainage channels and weep holes
- Verify all conduit sealing before first freeze
Winter (December–February)
- Post-storm visual inspections after ice storms or heavy snow events
- Do not open fixtures in freezing temperatures unless necessary — cold makes gaskets brittle and more likely to tear during removal
- Document any fixtures showing reduced output for spring service
Documentation and CMMS Integration
A maintenance SOP is only as good as the records it generates. For each inspection, log the following in your CMMS (Computerized Maintenance Management System) or maintenance spreadsheet:
- Fixture ID and location
- Inspection date and technician name
- Gasket condition (pass/fail/replaced)
- Conduit entry condition
- Interior moisture evidence (yes/no)
- Parts replaced (gasket part number, quantity)
- Torque spec used
- Air test result (pass/fail/not performed)
- Next scheduled inspection date
- Photos attached (yes/no)
This data becomes invaluable when you're making replacement decisions or justifying maintenance budget to facility management. A fixture with three gasket replacements in five years is a replacement candidate. A fixture with clean inspection records is not.
Related Reading
If this SOP is part of a broader facility lighting upgrade or sustainability initiative, these articles may be useful:
- Protecting the Night Sky: Using Cut-Off Commercial LEDs to Stop Light Pollution — Relevant if you're specifying full-cutoff fixtures as part of your replacement program.
- The Math of High Efficacy: Why 160lm/W LEDs Exponentially Boost Utility Rebates — Useful when making the case for fixture replacement vs. continued maintenance.
- Combating E-Waste in the Lighting Industry: Die-Cast Aluminum & LiFePO4 — For facilities with sustainability reporting requirements, covers end-of-life fixture disposal.
Frequently Asked Questions
Q: How often should I inspect gaskets on IP66 LED fixtures?
A: At minimum, once per year for all exterior fixtures. Increase to twice per year for fixtures in coastal environments, industrial chemical exposure areas, or fixtures older than 5 years. Always inspect within 30 days after any severe weather event.
Q: Can I use silicone caulk to reseal a fixture instead of replacing the gasket?
A: Not as a permanent fix. Silicone caulk can work as a temporary field repair, but it makes future service much harder and can trap moisture if applied incorrectly. Replace the gasket with the correct OEM part when possible.
Q: My fixture is fogged inside but still working. Do I need to replace it?
A: The driver is at risk. Condensation inside the housing means moisture has already reached the electronics. The fixture may continue working for months, but driver failure is likely accelerated. Flag it for replacement planning and inspect the driver terminals for corrosion at your next opportunity.
Q: What's the difference between IP65 and IP66? Does it matter for maintenance?
A: IP65 is rated for water jets up to 12.5 liters/minute at 30 kPa. IP66 handles 100 liters/minute at 100 kPa. For maintenance purposes, the inspection protocol is the same — the gasket is the critical component in both ratings. IP66 fixtures have slightly more robust gasket systems, but they still require the same inspection frequency.
Q: Can I replace gaskets myself, or do I need to send the fixture back to the manufacturer?
A: For most commercial LED wall packs and area lights, gasket replacement is a field-serviceable task. You need the correct replacement gasket (match the part number from the fixture label or manufacturer spec sheet), a torque screwdriver, and isopropyl alcohol. The 10-step protocol in this article covers the full process.
Q: What causes gaskets to fail faster than expected?
A: The top causes are UV exposure (south-facing fixtures degrade faster), thermal cycling (large temperature swings compress and relax the gasket repeatedly), chemical exposure (cleaning products, industrial emissions), and improper reinstallation (over-torquing or under-torquing cover screws).
Q: Is it safe to open a fixture in the rain to do an emergency inspection?
A: No. Always de-energize the circuit first, and avoid opening fixtures during active precipitation. If you need to inspect after a storm, wait for dry conditions. Opening a fixture in rain defeats the purpose of the IP rating and creates an electrocution hazard.
Q: How do I know if my replacement gasket is the right one?
A: Check the fixture label for the model number and contact the manufacturer for the correct gasket part number. Using an undersized or oversized gasket will not provide IP66 protection even if it appears to fit. For Rackora fixtures, contact us directly for replacement parts.
Q: My facility has 200+ fixtures. How do I prioritize which ones to inspect first?
A: Prioritize in this order: (1) fixtures showing visible fogging or reduced output, (2) fixtures in coastal or chemical exposure environments, (3) fixtures older than 5 years, (4) fixtures that have been serviced previously (reinstallation errors are common), (5) all remaining fixtures on annual rotation.
Q: Does IP66 rating cover submersion in standing water?
A: No. IP66 covers water jets, not submersion. Submersion protection starts at IP67 (30 minutes at 1 meter depth) and IP68 (continuous submersion). If your fixtures are in areas prone to flooding or standing water, you need IP67 or IP68 rated fixtures, not IP66.
Ready to Upgrade Your Outdoor Fixtures?
If your inspection reveals fixtures that are past their serviceable life, we can help you spec the right replacements. Our wall pack and area light series are built for long-term commercial durability — die-cast aluminum housings, IP66 rated, DLC Premium certified for utility rebate eligibility.
